247 Lighting

247 Lighting Red LED Side Marker Lamp with Bracket – CA6090R

SKU: CA6090R
(0)
€7,00 inc. VAT
Only 2 left
Low inventory - Hurry up!
100% secure payments
Industry leading quality

Got questions? Feel free to get in touch

Tel: 059 8632494

Email: enquiry@conlanoils
https://conlanoils.com/

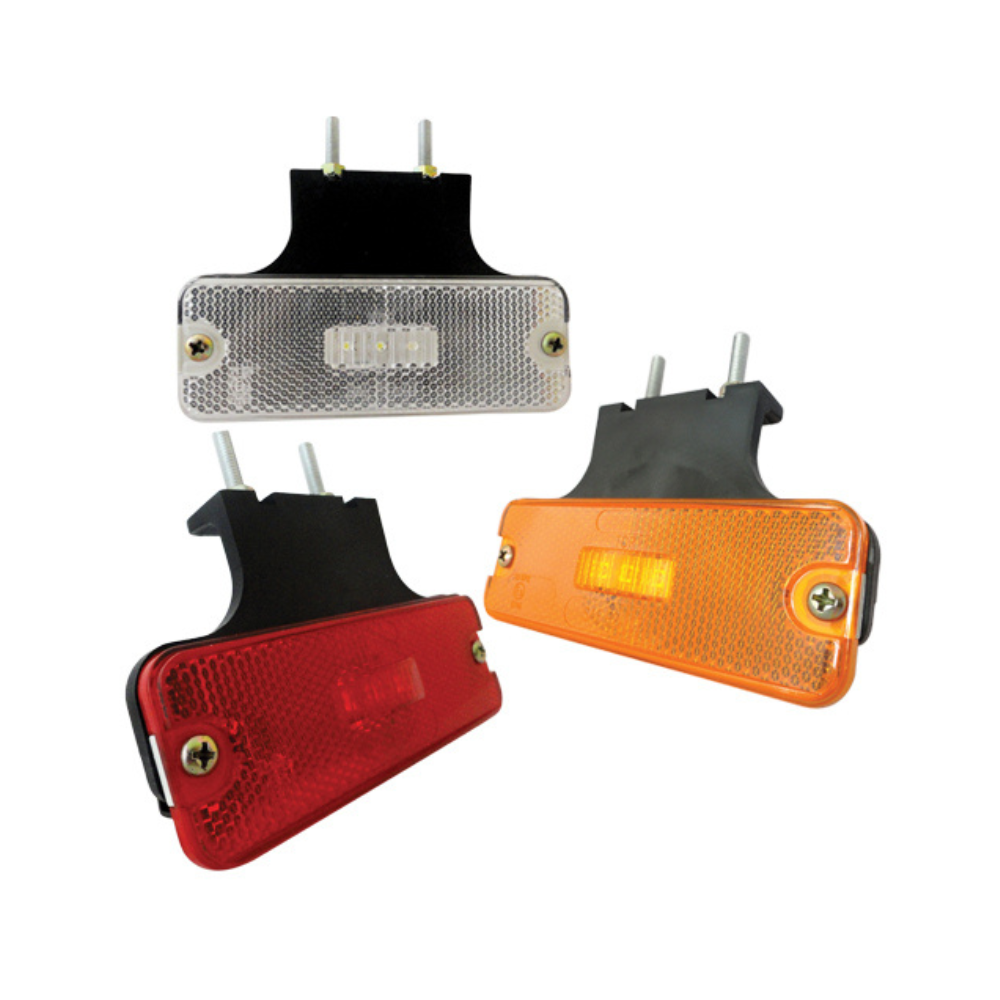

247 Lighting Red LED Side Marker Lamp with Bracket – CA6090R

The 247 Lighting CA6090R Red LED Side Marker Lamp with Bracket is a compact, durable and highly visible lighting solution for trucks, trailers, agricultural machinery, plant equipment and commercial vehicles. Designed for 12–24V electrical systems, this red LED marker light provides reliable side and rear visibility while using minimal power.

Featuring three high-output red LEDs, a durable PMMA lens and ABS base, the CA6090R is built to withstand demanding operating environments. Its IP67 rating provides protection against dust and water, while the included bracket offers flexible mounting options.

Key Features

  • 247 Lighting CA6090R
  • 12–24V operating voltage
  • 3 red LEDs
  • 1.5W rated power
  • Low power consumption: 0.24–0.48W
  • IP67 rated for dust and water protection
  • Durable PMMA lens
  • ABS base construction
  • Side marker light with flush-mount design
  • Pendant bracket mount for flexible installation
  • ECE Regulation 7 approved
  • Wide operating temperature range of -40°C to +85°C
  • Compact 110 × 40 × 12mm design
  • Suitable for trucks, trailers, tractors and agricultural machinery

Specifications

Specification Details
Brand 247 Lighting
Part Number CA6090R
Light Type LED Side Marker Lamp
Colour Red
Voltage 12–24V
LEDs 3 Red LEDs
Rated Power 1.5W
Power Consumption 0.24–0.48W
Lens Material PMMA
Base Material ABS
Protection Rating IP67
Mounting Flush Mount / Pendant Bracket
Approval ECE Regulation 7
Dimensions 110 × 40 × 12mm
Operating Temperature -40°C to +85°C

Suitable Applications

The CA6090R is ideal for trailers, trucks, tractors, agricultural machinery, plant equipment, commercial vehicles and recovery vehicles requiring a compact, reliable red LED side marker light.
