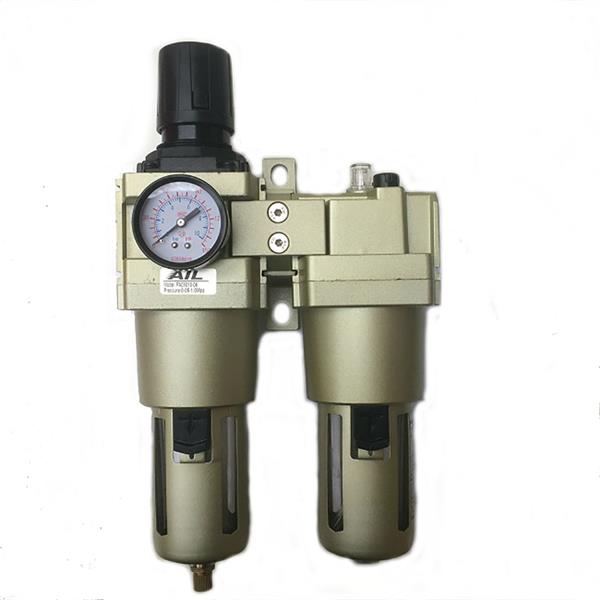

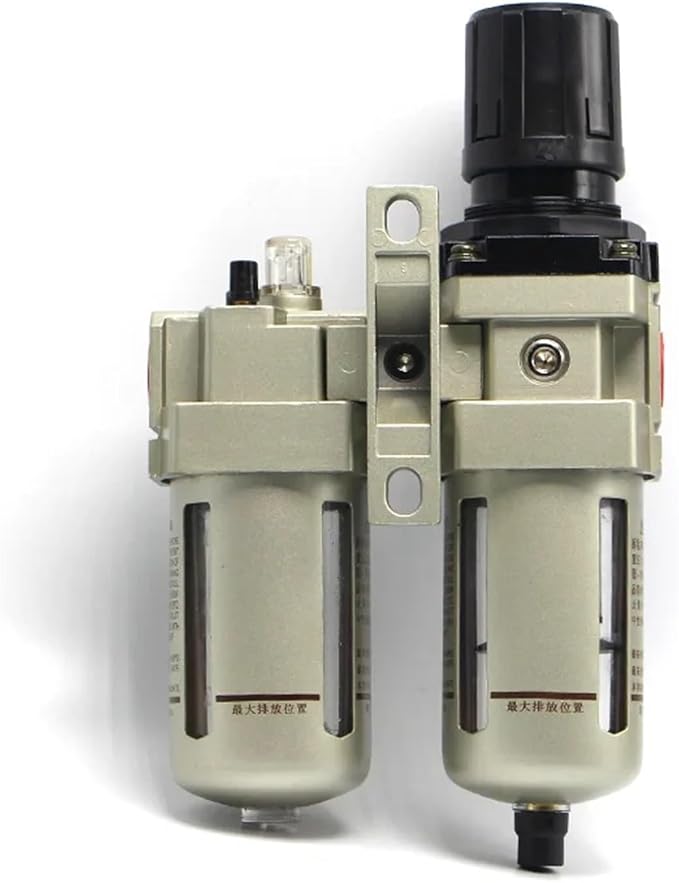

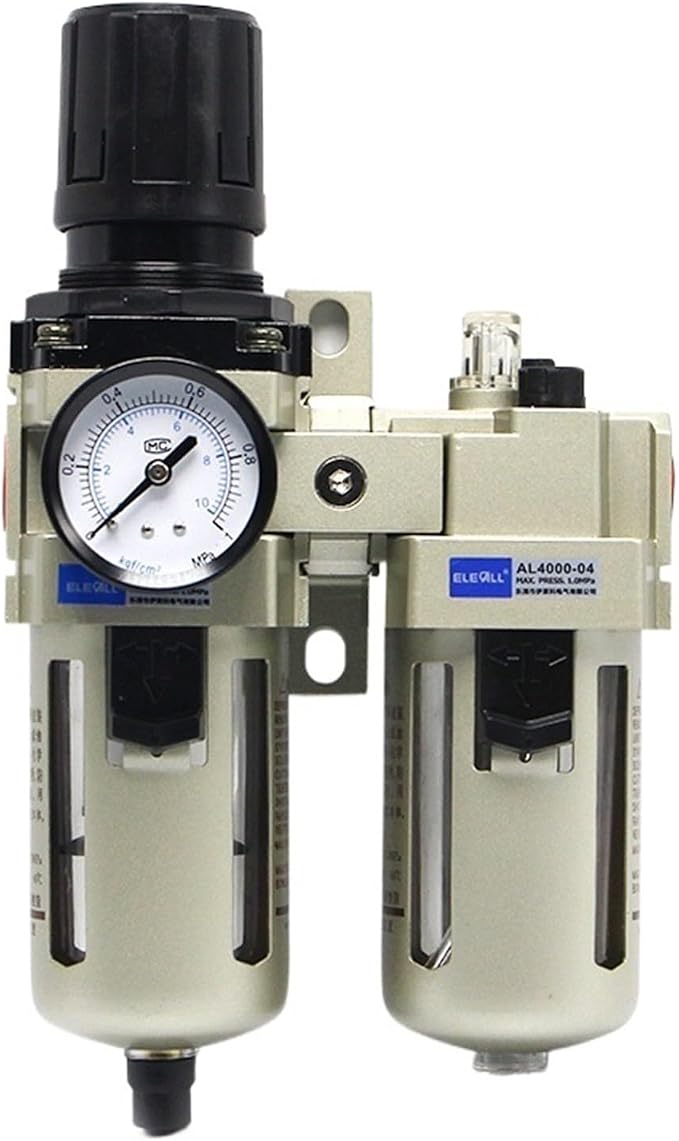

The Air Impact AC4010-04 1/2" BSP Female Filter Regulator & Lubricator is a complete compressed-air preparation unit combining filtration, pressure regulation and lubrication in one convenient assembly.
Designed for air compressors, pneumatic tools, workshops, garages and industrial air systems, the AC4010-04 helps provide cleaner, regulated and lubricated air to downstream equipment. Comparable AC4010-04 specifications list a 1/2" connection, 25-micron filtration, adjustable pressure regulation and a flow capacity around 105 SCFM / 3,000 L/min, depending on the configuration.
The AC4010-04 combines three important functions into one compact unit:
The filter removes condensation and contaminants from the compressed-air supply before the air reaches downstream equipment. This helps protect pneumatic components from dirt and moisture.
Comparable AC4010-04 specifications list a 25-micron filter element.

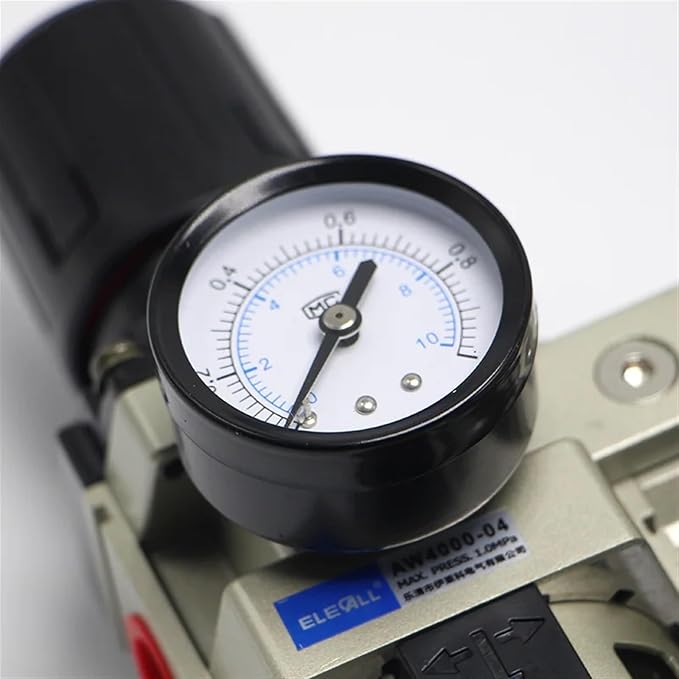

The integrated regulator allows the operator to adjust the downstream air pressure to suit the connected pneumatic equipment.
This helps prevent pneumatic tools from operating at unnecessarily high pressure and provides more consistent performance.
The lubricator adds a controlled amount of oil mist to the compressed-air supply, helping provide lubrication to air tools and pneumatic components that require lubricated air.
This can be particularly useful for equipment such as air impact wrenches, grinders, drills and other pneumatic tools.
The AC4010-04 is designed around a 1/2" connection and is suitable for higher-volume workshop and industrial compressed-air installations.
The Air Impact AC4010-04 is suitable for:
| Specification | Details |
|---|---|
| Brand | Air Impact |
| Product Code | AC4010-04 |
| Product Type | Filter Regulator Lubricator |
| Connection | 1/2" BSP Female |
| Filter | 25 Micron |
| Flow Rate | Approx. 3,000 L/min |
| Regulator | Adjustable |
| Gauge | Included |
| Lubricator | Included |
| Mounting Bracket | Included |
| Application | Compressed Air / Pneumatic |
Published specifications for the AC4010-04 family identify it as a complete filter-regulator-lubricator assembly with a 1/2" port, 1/4" gauge port, 25 μm filtration and approximately 106 SCFM flow capacity under stated test conditions.
Installing a Filter Regulator Lubricator (FRL) at the air supply can help:
For pneumatic equipment that does not require lubricated air, the lubricator should be adjusted appropriately or bypassed according to the equipment manufacturer's requirements.
The Air Impact 1/2" BSP Filter Regulator & Lubricator provides a convenient three-stage air preparation solution for busy workshops and compressed-air systems.
Combining filtration, pressure regulation and lubrication into one unit saves installation space while helping provide pneumatic equipment with clean, controlled and appropriately lubricated compressed air.
