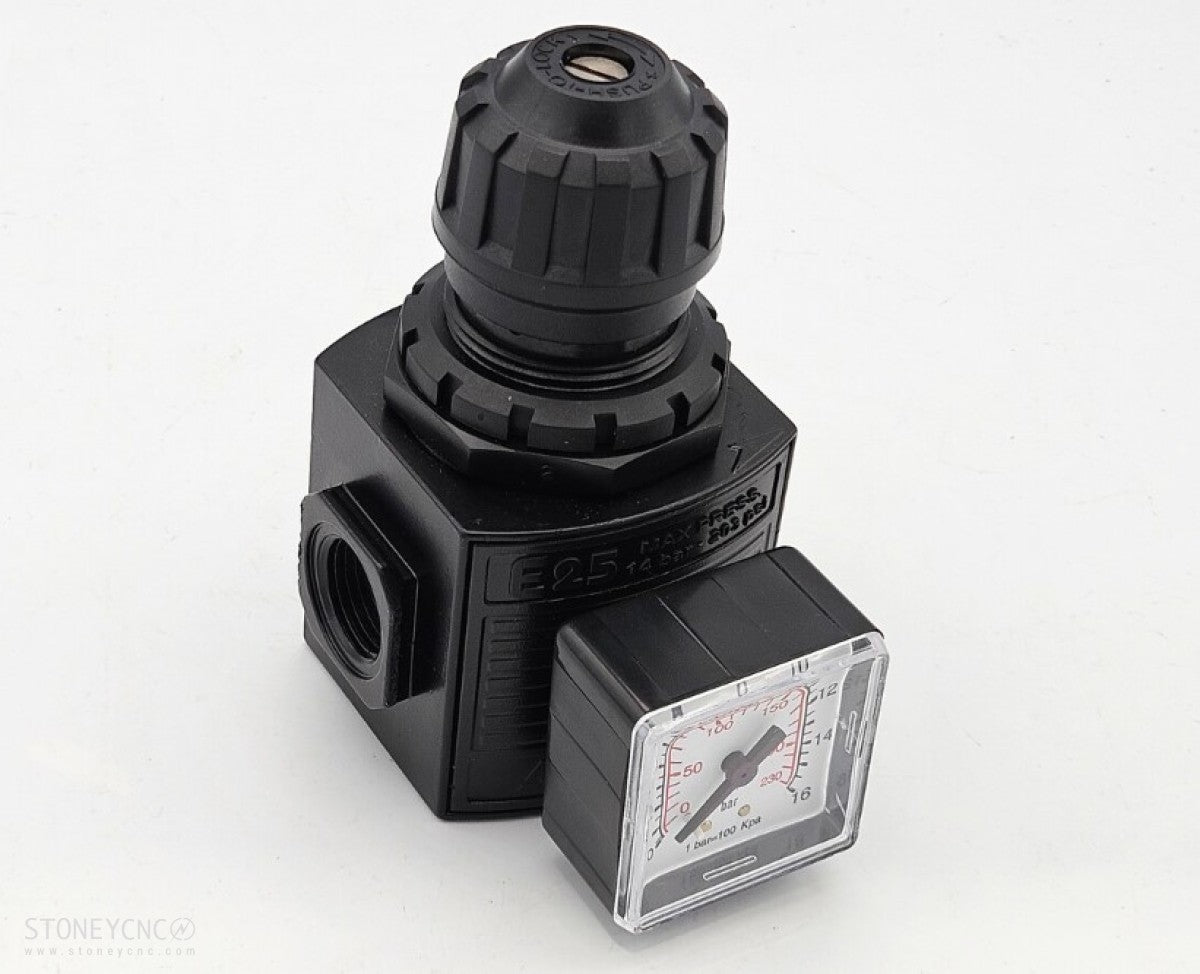

The ANI 1/2" Pressure Regulator with Gauge – AH117002 is a professional compressed-air pressure regulator designed to provide accurate and consistent control of downstream air pressure.
Featuring a 1/2" BSP female connection, integrated pressure gauge and piston-operated regulation system, the AH117002 is ideal for air compressors, pneumatic tools, workshops, garages and industrial compressed-air systems. ANI specifies a maximum operating pressure of 16 bar and a maximum flow rate of approximately 2,800 Nl/min.
The ANI AH117002 uses a piston-type pressure regulation system designed to provide precise and consistent pressure control. Its relieving system helps maintain the pressure gauge reading when reducing downstream pressure.
The integrated gauge has a 0–16 bar / 0–230 psi scale, allowing the operator to monitor the regulated air pressure directly from the unit.
The AH117002 is suitable for:
| Specification | Details |
|---|---|
| Brand | ANI |
| Product Code | AH117002 |
| Model | E/25/3 |
| Connection | 1/2" Female BSP |
| Pressure Range | 0–16 bar / 0–230 psi |
| Maximum Pressure | 16 bar |
| Maximum Flow | Approx. 2,800 Nl/min |
| Gauge | 0–16 bar / 0–230 psi |
| Regulation System | Piston Type |
| Weight | Approx. 0.662 kg |
| Application | Compressed Air |
| Country of Origin | Italy |
ANI's catalogue identifies AH117002 as the E/25/3 1/2" female BSP modular pressure regulator, with dimensions of approximately 72 × 63 × 95/118 × 88 × 30 × 60 mm.
A pressure regulator is important when pneumatic equipment requires a controlled air pressure rather than the full pressure available from the compressor.
The AH117002 allows the operator to adjust the downstream pressure to suit the application, helping provide a more controlled and consistent air supply to pneumatic equipment.
The ANI 1/2" Pressure Regulator with Gauge is a robust solution for controlling compressed-air pressure in professional workshops, garages, agricultural applications and industrial pneumatic systems.
Its 1/2" BSP connection, integrated 0–16 bar gauge and piston-operated regulation system make it a versatile choice for managing air pressure downstream of an air compressor.
