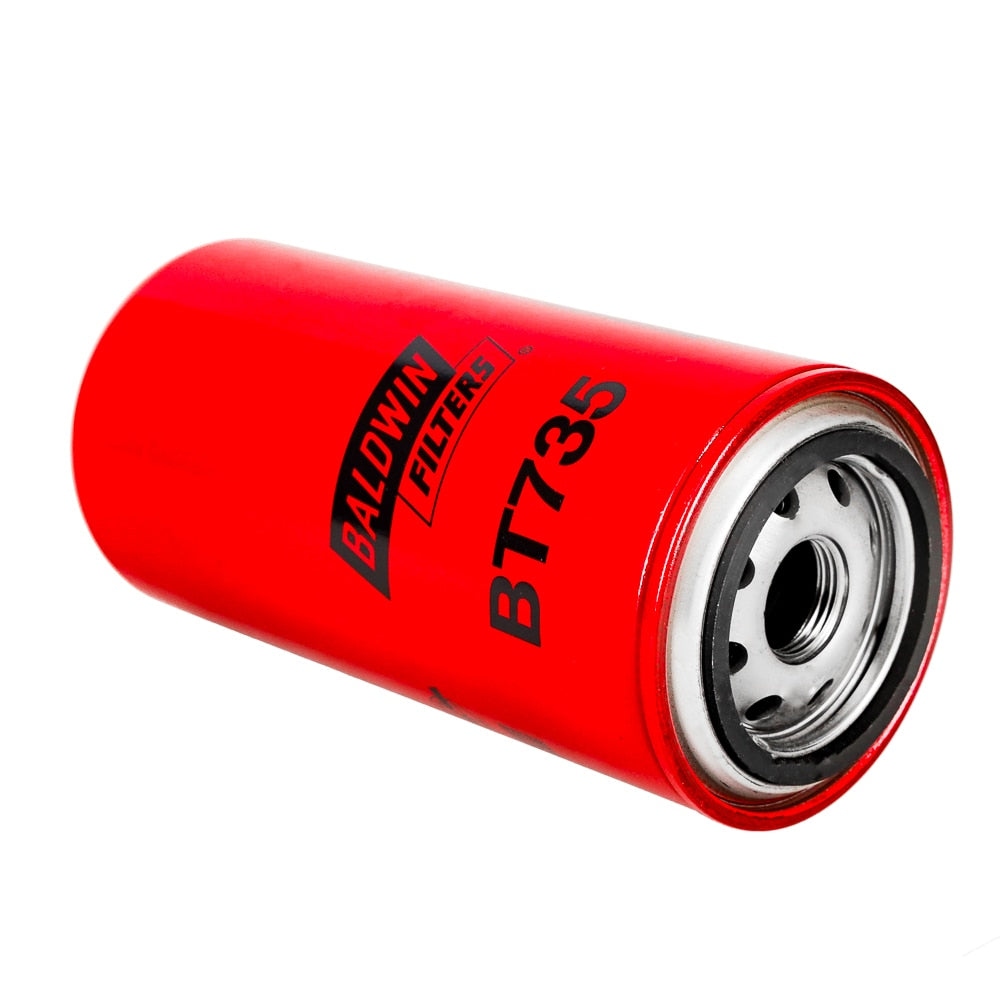

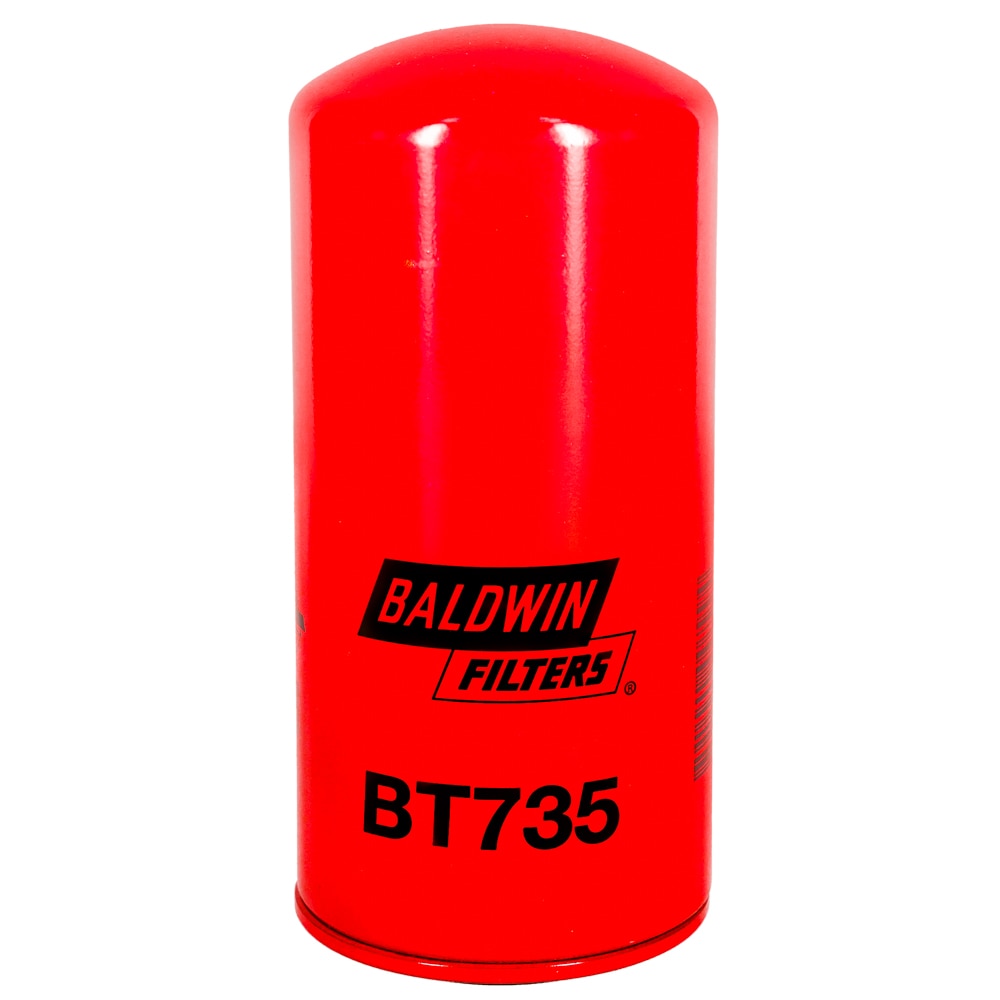

The Baldwin Medium Pressure Hydraulic Spin-on Filter is designed to help maintain hydraulic fluid cleanliness and protect hydraulic systems used in mobile and industrial equipment. This spin-on filter uses a 20 micron nominal / 45 micron absolute filtration rating and incorporates a 30 PSID bypass valve for reliable operation within the specified system conditions.
With a 1"-12 thread, integral gasket and substantial filter body, this Baldwin hydraulic filter is suitable for a range of construction, agricultural and heavy equipment applications. It is listed for equipment associated with Atlas-Weyhausen, Bomag, Demag, Kramer, Liebherr, Moxy, V.M.E. and Volvo.
The filter is also related to Baldwin BT739 when used with the appropriate adapter and cross-references to Volvo part number 4787923-4.
Clean hydraulic oil is important for the reliable operation of pumps, valves, cylinders and other hydraulic components. Contamination within hydraulic fluid can contribute to component wear and reduced system performance.
The Baldwin filter is designed to remove contaminants from hydraulic fluid as it passes through the filtration media. Its 20 micron nominal / 45 micron absolute rating provides a defined filtration specification for applications requiring this level of hydraulic filtration.
The integrated 30 PSID bypass valve is an important part of the filter design and should be considered when matching the filter to the hydraulic system manufacturer's requirements.
This Baldwin medium-pressure hydraulic filter is listed for applications involving equipment from manufacturers including:
It may be suitable for construction machinery, material-handling equipment and other mobile hydraulic applications where the filter specifications and dimensions match the original requirement.
Always compare the existing filter and equipment manufacturer's specification before ordering.
| Specification | Details |
|---|---|
| Brand | Baldwin |
| Product Type | Hydraulic spin-on filter |
| Application | Medium-pressure hydraulic systems |
| Bypass Valve | 30 PSID |
| Thread Size | 1"-12 |
| Outside Diameter | 3 23/32" (94.5 mm) |
| Length | 8 7/32" (208.8 mm) |
| Gasket | Integral G401 |
| Micron Rating | 20 micron nominal / 45 micron absolute |
| Related Baldwin Filter | BT739 with adapter |
| Volvo Reference | 4787923-4 |
| Equipment Applications | Atlas-Weyhausen, Bomag, Demag, Kramer, Liebherr, Moxy, V.M.E., Volvo |
Hydraulic filters can look very similar while having different threads, dimensions, bypass settings and filtration characteristics. Before replacing a filter, check the part number, thread size, overall dimensions, gasket arrangement and required filtration specification against the original filter or equipment manufacturer's information.
The Volvo reference 4787923-4 can also be useful when identifying the correct replacement, but should be confirmed against the particular machine and application.
Baldwin filtration products are designed for demanding engine and equipment applications, with filter media selected according to the requirements of different filtration systems.
For hydraulic equipment, selecting the correct filter is important to help maintain fluid cleanliness and support the reliable operation of hydraulic components.
