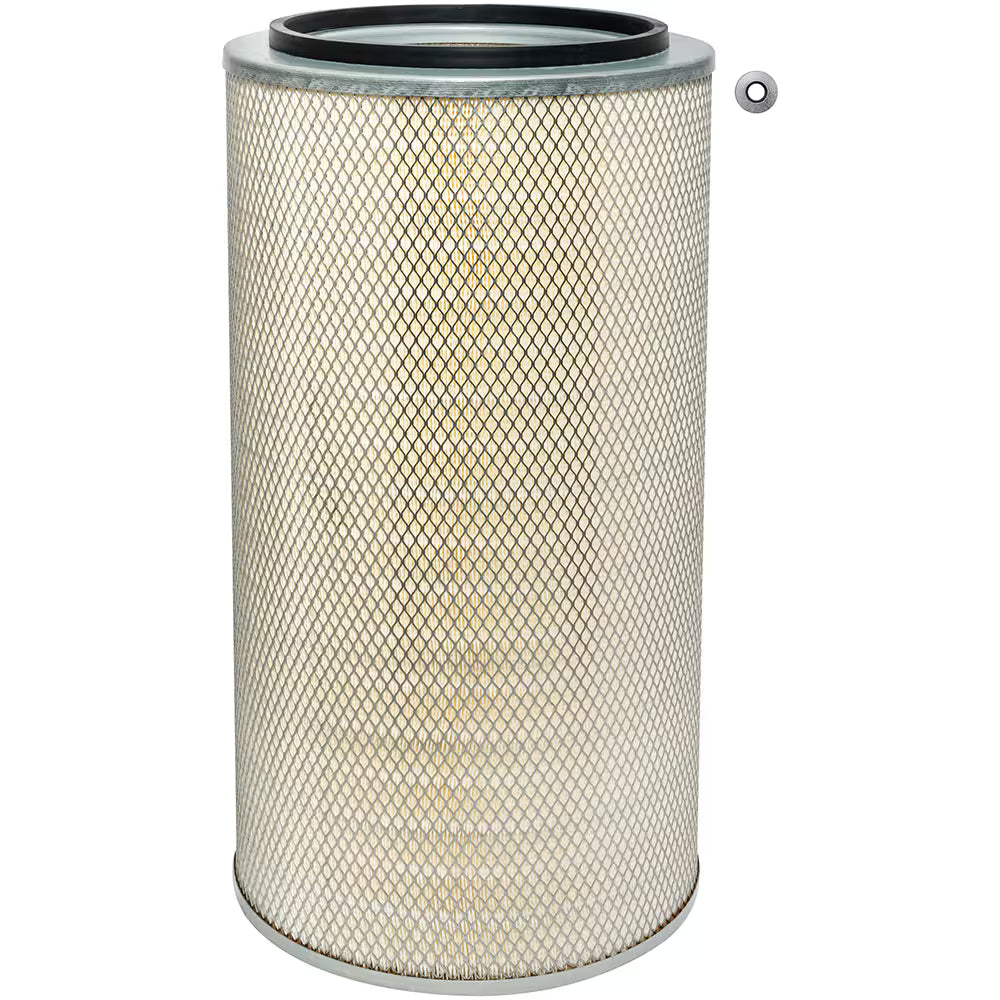

The Baldwin PA3606 axial seal air filter element is an outer air filter designed to help protect the engine intake system from airborne dust, dirt and other contaminants. By filtering incoming air before it reaches the combustion system, the filter helps support clean air delivery and proper engine operation.
The PA3606 features axial seal construction with securely attached metal end caps and a raised gasket, providing a positive seal when correctly installed. This helps minimise the risk of unfiltered air bypassing the filter element.
This Baldwin air filter element is specified for use with PA3787 and is suitable for selected Claas, Liebherr and New Holland equipment, as well as Iveco and M.A.N. trucks.
Air filtration is particularly important on agricultural machinery, construction equipment and commercial vehicles operating in dusty or demanding environments.
The Baldwin PA3606 is designed to capture airborne contaminants before they can enter the engine's combustion air system. Keeping the intake air clean helps support the engine's air supply and reduces the amount of dust and debris reaching downstream engine components.
The filter's axial seal design provides an additional focus on sealing performance around the filter element.
The Baldwin PA3606 uses securely affixed metal end caps and a raised gasket to create the sealing interface.
The gasket is attached to the filter element and an additional furnished gasket is included according to the supplied specification.
Correct installation is important to ensure the filter seats properly and prevents air from bypassing the filtration media.
The PA3606 is listed for applications including:
The filter is specified for use with Baldwin PA3787 as the associated inner element/application reference.
The supplied specifications list the following competitor part numbers:
Always check the original filter part number, equipment model and dimensions before ordering. Cross-reference numbers should be used as a guide rather than assumed to guarantee compatibility.
| Specification | Details |
|---|---|
| Brand | Baldwin |
| Part number | PA3606 |
| Product type | Outer air element |
| Filter design | Axial seal |
| For use with | PA3787 |
| Outside diameter | 327.8mm / 12 29/32" |
| Inside diameter | 10.3mm / 13/32" & 215.9mm / 8 1/2" |
| Length | 615.9mm / 24 1/4" |
| Attached gasket | Yes |
| Furnished gasket | Included |
| Listed applications | Claas, Liebherr, New Holland, Iveco, M.A.N. |
| Claas cross-reference | 773670 |
| M.A.N. cross-reference | 81.08401.6082 |
A clean, correctly fitted air filter is an important part of an engine's intake system. Agricultural and heavy-duty machinery can operate in environments with significant levels of dust and airborne debris, making regular air filter inspection and replacement particularly important.
The Baldwin PA3606 provides a replacement outer air filter element for compatible equipment, helping maintain effective filtration of incoming air.
Always follow the equipment manufacturer's recommended service intervals and air filter maintenance procedures.
Looking for a Baldwin PA3606 air filter element for agricultural machinery, heavy equipment or commercial vehicles? Conlan Oils supplies a range of replacement filters and maintenance products for professional and agricultural applications.
If you're unsure whether the PA3606 is the correct filter for your machine, provide us with the existing filter number, machine model or application details, and our team can help you identify the appropriate option.
If you can't find the product you need on our website, contact us and we'll be happy to help. We can often source and order products that aren't currently listed online.
Call 059 8632494 or email enquiry@conlanoils.com to check availability and ordering options.
