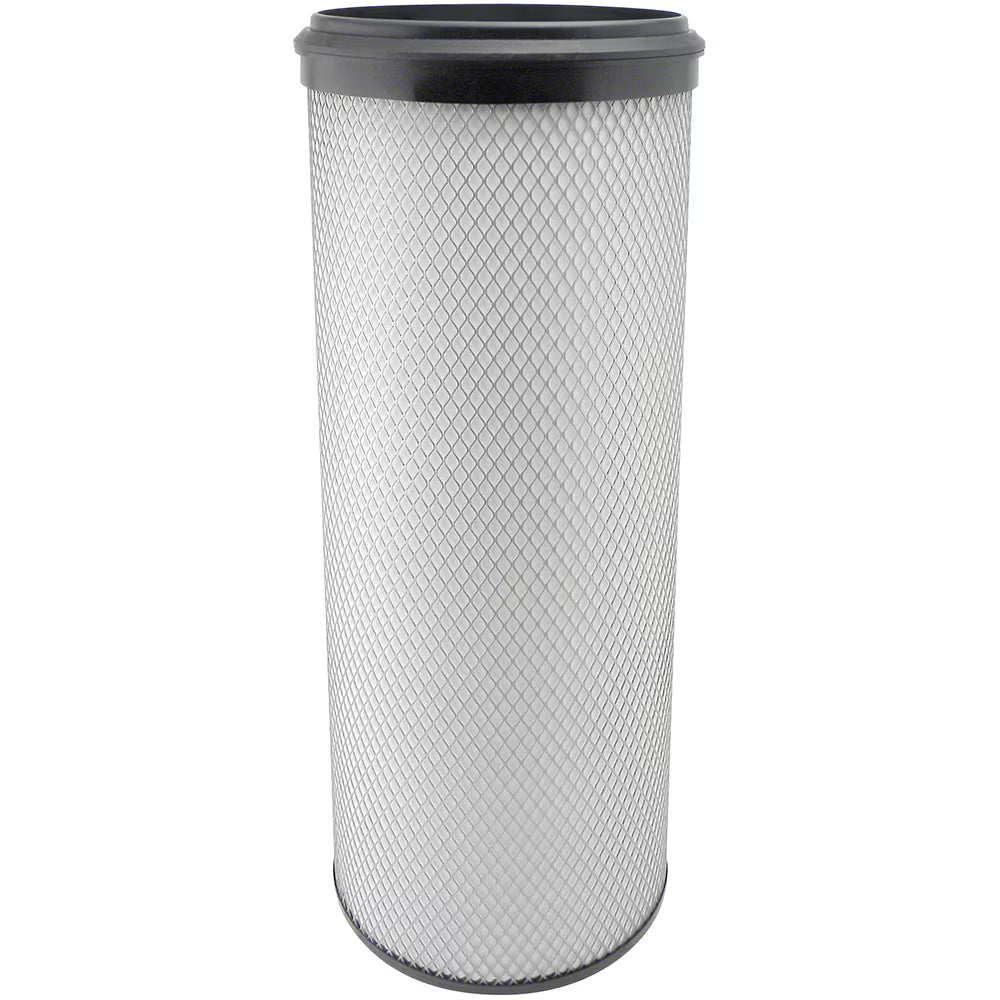

The Baldwin PA3787 axial seal inner air filter element is designed to work inside the Baldwin PA3606 outer air filter, providing an additional stage of air filtration for compatible agricultural machinery, heavy equipment and commercial vehicles.
As part of an engine air filtration system, the inner element helps prevent dust, dirt and other airborne contaminants from reaching the engine's combustion air system. The axial seal design incorporates securely attached metal end caps and an integral raised gasket to help create a reliable seal when correctly fitted.
The PA3787 is listed for selected Claas, Liebherr and New Holland equipment, as well as M.A.N. trucks.
The PA3787 is an inner air element, rather than the primary outer filter. It is designed to fit inside the Baldwin PA3606 outer element.
This type of filtration arrangement is commonly used on equipment operating in dusty or demanding conditions, including agricultural machinery and heavy-duty vehicles. The inner element provides additional protection for the engine intake system when used as part of the specified filter assembly.
The Baldwin PA3787 features axial seal construction with securely affixed metal end caps and an integral gasket.
The gasket is included as part of the filter element and is designed to provide the sealing interface between the filter and its housing when correctly installed.
A properly seated filter is essential to help prevent unfiltered air from bypassing the filtration element.
The PA3787 is specified to fit inside Baldwin PA3606.
For applications using both elements, check that the existing outer and inner filter numbers match the equipment manufacturer's requirements before ordering.
The PA3787 is listed for:
Claas equipment
Liebherr equipment
New Holland equipment
M.A.N. trucks
The supplied specifications list the following competitor references:
Claas 773820
Liebherr 7368215
M.A.N. 81.08304.0066
Cross-reference numbers are provided for identification purposes. Always confirm the original part number, equipment model and filter dimensions before ordering.
| Specification | Details |
|---|---|
| Brand | Baldwin |
| Part number | PA3787 |
| Product type | Inner air element |
| Fits inside | PA3606 |
| Outside diameter | 201.6mm / 7 15/16" |
| Flange diameter | 211.1mm / 8 5/16" |
| Inside diameter | 16.7mm / 21/32" & 186.5mm / 7 11/32" |
| Length | 608.8mm / 23 31/32" |
| Gasket | Integral gasket included |
| Filter design | Axial seal |
| Listed applications | Claas, Liebherr, New Holland, M.A.N. |
| Claas cross-reference | 773820 |
| Liebherr cross-reference | 7368215 |
| M.A.N. cross-reference | 81.08304.0066 |
Heavy equipment and agricultural machinery can operate in environments with significant amounts of dust and airborne debris. Maintaining the complete air filtration system is therefore important for protecting the engine's intake air supply.
The PA3787 provides a replacement inner air filter element for compatible applications and should be used as part of the specified filtration system.
Always follow the equipment manufacturer's service instructions when inspecting, cleaning or replacing air filter elements. Replace the element if it is damaged or at the manufacturer's recommended service interval.
Looking for a Baldwin PA3787 inner air filter element for Claas, Liebherr, New Holland or M.A.N. equipment? Conlan Oils can supply a range of filters and maintenance products for agricultural machinery, heavy equipment and commercial vehicles.
If you're replacing the PA3787, it is worth checking the outer PA3606 element at the same time to ensure both components are correct for your machine.
If you can't find the product you need on our website, contact us and we'll be happy to help. We can often source and order products that aren't currently listed online.
Call 059 8632494 or email enquiry@conlanoils.com to check availability and ordering options.
