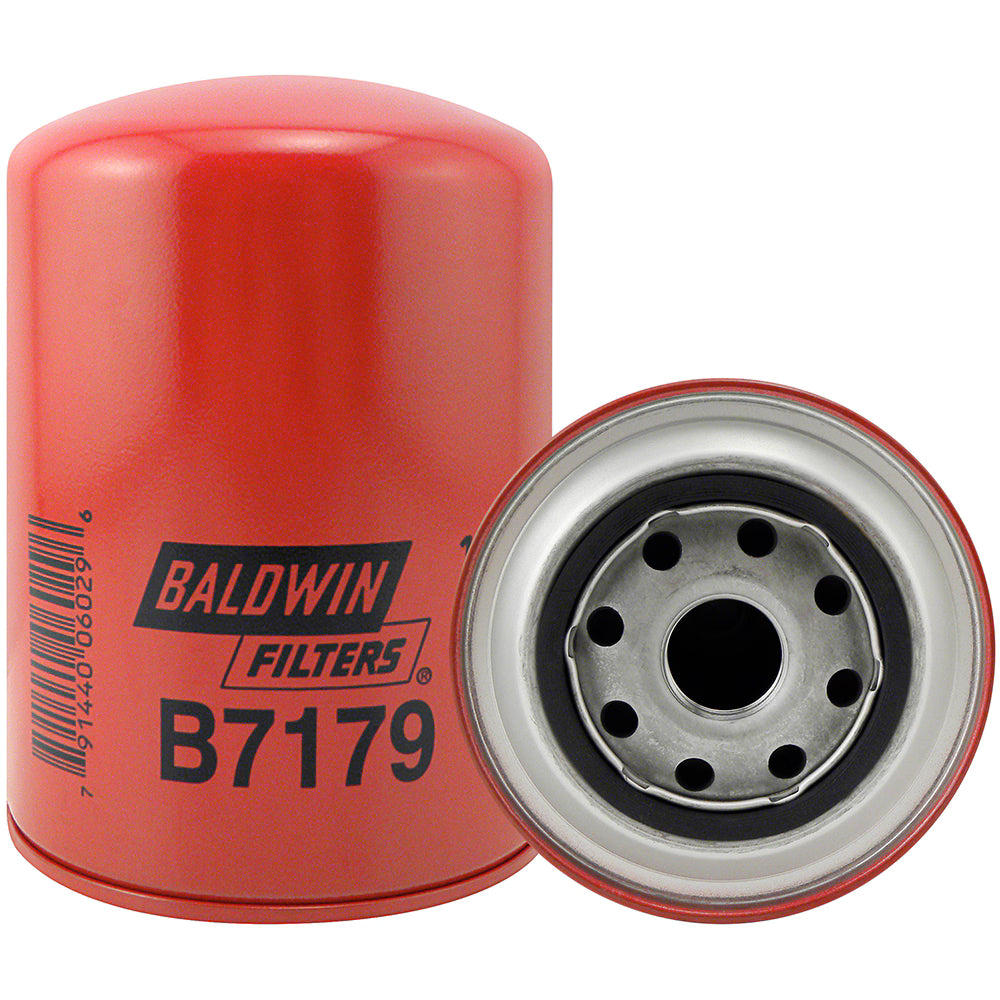

The Baldwin spin-on lube filter is designed to remove damaging contaminants and wear particles from engine oil, helping maintain cleaner lubrication and supporting reliable engine operation. This filter incorporates an anti-drainback valve and a 20 PSID bypass valve for applications where consistent oil filtration is important.
With an M24 x 1.5 thread, integral G401 gasket and an 18-micron nominal / 40-micron absolute filtration rating, this Baldwin filter is specified for a range of AGCO, Case, Massey Ferguson, Valtra and Valmet equipment.
This Baldwin lube filter is listed for use on selected equipment from:
It is particularly suited to agricultural and machinery applications where the correct engine oil filter is required for routine servicing or replacement.
Always check the existing filter number, thread size, dimensions and equipment manufacturer's requirements before ordering to ensure the filter is suitable for your particular application.
| Specification | Details |
|---|---|
| Brand | Baldwin |
| Product type | Lube spin-on filter |
| Thread size | M24 x 1.5 |
| Outside diameter | 4 1/4" (108.0 mm) |
| Length | 5 27/32" (148.4 mm) |
| Gasket | Integral G401 |
| Anti-drainback valve | Yes |
| Bypass valve | 20 PSID |
| Filtration rating | 18 micron nominal / 40 micron absolute |
| Application | AGCO, Case, Massey Ferguson, Valtra, Valmet equipment |
| Competitor reference | AGCO 836647133 |
Engine oil carries contaminants away from internal components as it circulates through the lubrication system. A correctly specified filter helps capture particles before they can continue circulating through the engine.
The anti-drainback valve is designed to help retain oil within the filter when the engine is stopped, while the bypass valve provides an alternative oil flow path when the specified bypass pressure is reached. Both features are important considerations when selecting a replacement filter.
For servicing agricultural machinery, using the correct filter specification is essential. Do not select a replacement solely on physical appearance; thread, dimensions, gasket specification and application should all be checked.
With over 40 years of experience supplying oils, lubricants, tools and workshop products, Conlan Oils can help you source the right filtration and lubrication products for your machinery and servicing requirements.
If you can't find the product you need on the Conlan Oils website, contact our team. We can often source and order products that aren't currently listed online and may be able to help you find a suitable option for your requirements.
