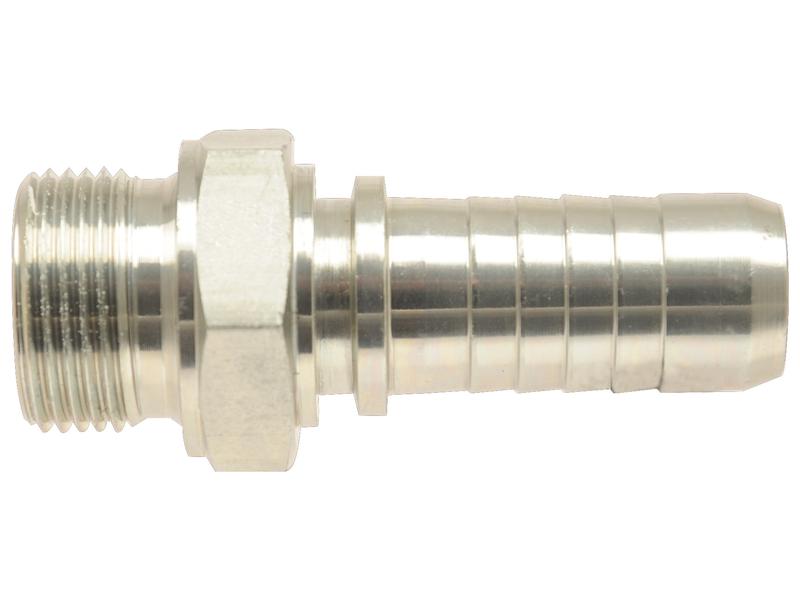

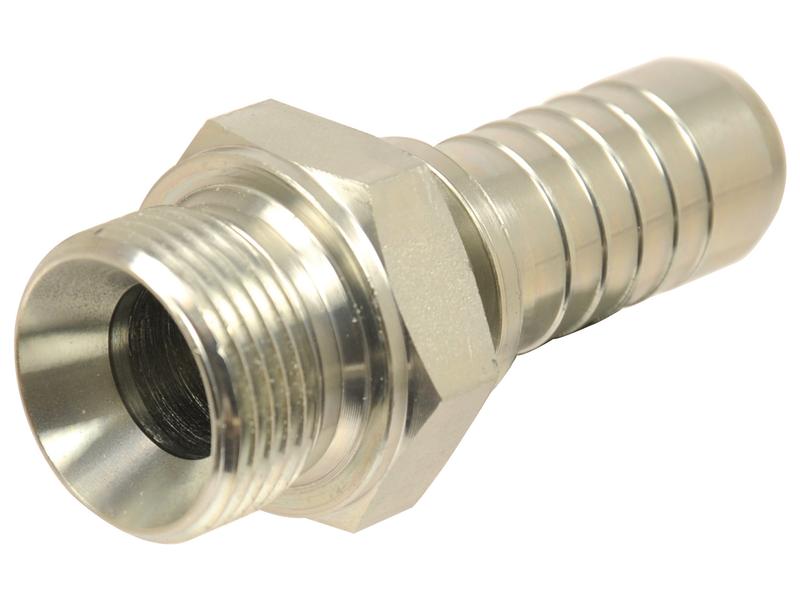

The Dicsa S.53057 BSP 60° Hose Insert is a straight two-piece hose fitting designed for connecting 3/4" hose to a 3/4" BSP male threaded connection. Featuring a 60° cone angle, this fitting is suitable for compatible hydraulic hose and fluid connection applications where the specified hose and thread dimensions are required.
With a 3/4" nominal hose connection, 3/4" BSP male thread and straight configuration, the S.53057 provides a practical connection option for hydraulic and fluid handling systems.
The S.53057 combines a 3/4" hose insert with a 3/4" BSP male thread, making it suitable for systems designed around these specific connection dimensions.
The straight fitting configuration allows the hose and threaded connection to remain aligned, while the 60° cone specification identifies the sealing/connection geometry of the fitting.
When replacing an existing hydraulic hose fitting, always match the hose internal diameter, thread type, thread size, connection geometry and fitting configuration before ordering.

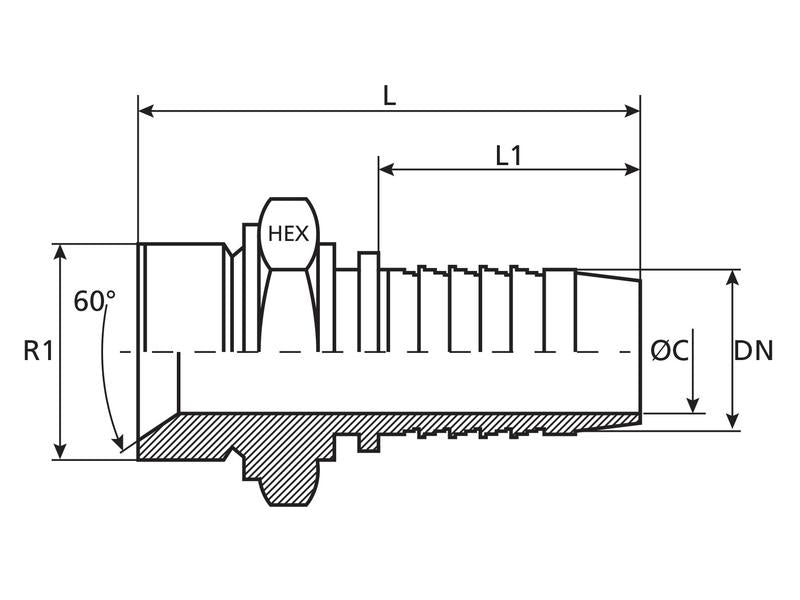

| Specification | Details |
|---|---|
| Brand | Dicsa |
| Part Number | S.53057 |
| Reference | 241121212 |
| Product Type | BSP 60° Hose Insert |
| Configuration | Straight |
| Fitting | 2 Piece Fitting |
| Hose Inner Diameter | 3/4" / 19.05mm |
| Nominal Size | DN20 |
| Thread Type | BSP |
| Thread | 3/4" Male |
| Cone Angle | 60° |
| C Ø | 15mm |
| Hex 1 | 41mm |
| Overall Length (L) | 79.5mm |
| Length L1 | 40.5mm |
| Weight | 0.14kg |
| EAN | 5023495530574 |
| Tariff Code | 7307199000 |
Hydraulic fittings must be matched correctly to the hose and mating connection. 3/4" BSP male thread, 3/4" hose ID and 60° connection geometry should all be verified against the existing system before installation. Do not rely on nominal size alone, as hydraulic fitting standards can use different thread and sealing arrangements.
