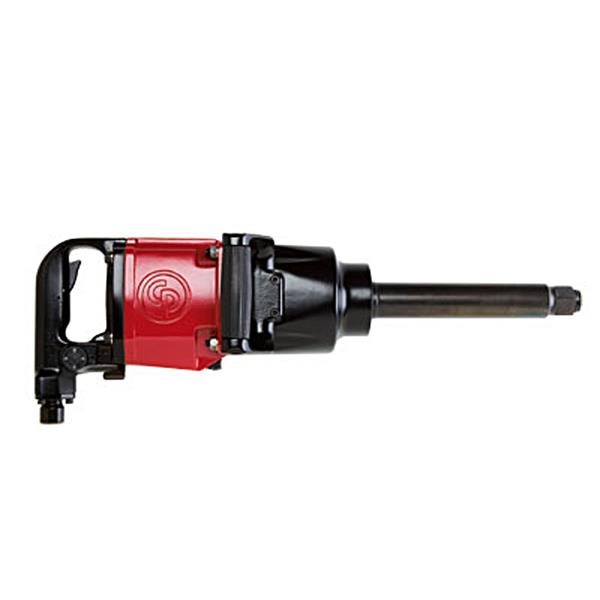

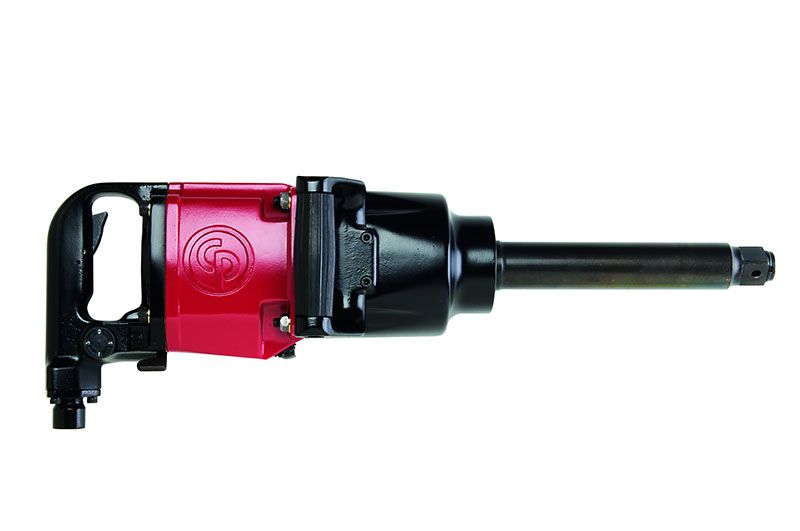

The Chicago Pneumatic CP5000 1" Drive Pneumatic Impact Wrench is a heavy-duty, professional air impact wrench designed for demanding bolting and unbolting applications. With a maximum reverse torque of 3,390 Nm (2,500 ft-lbs), it is particularly suited to truck and HGV tyre workshops, buses, heavy equipment, agricultural machinery and industrial maintenance.
The CP5000 features a robust metal motor housing and pinless rocking-dog impact mechanism, providing the durability required for high-volume professional use. Chicago Pneumatic specifically positions the CP5000 for heavy-vehicle tyre applications.
The CP5000 is designed for applications where high torque and durability are essential.
Its maximum reverse torque of 3,390 Nm makes it capable of tackling stubborn wheel nuts and heavily tightened fasteners found on trucks, buses, heavy plant and agricultural machinery. The maximum forward working torque is rated at 2,800 Nm.
The pinless rocking-dog impact mechanism is designed for high durability in demanding bolting and unbolting applications.
Combined with the metal motor housing and steel clutch housing, this gives the CP5000 the robust construction expected from a professional 1-inch pneumatic impact wrench.
The CP5000 features a convenient 4-position power setting system, allowing the operator to adjust the impact power to suit different applications.
The rear-mounted reverse valve also provides easy control when switching between forward and reverse operation.
The extended-anvil design provides additional reach when working on truck, bus and heavy equipment wheels, making the CP5000 particularly well suited to professional tyre service and heavy vehicle maintenance.
The 1" square drive accepts suitable heavy-duty impact sockets for large fasteners and wheel nuts.
The CP5000 is particularly suitable for:
Chicago Pneumatic describes the CP5000 as being designed for high-volume tyre work on trucks, buses and heavy equipment.
The CP5000 requires a suitable high-flow compressed-air system to achieve its full performance.
It has a 1/2" air inlet and requires a minimum hose diameter of 13mm for a 5m hose. Air consumption at load is approximately 25 L/s, with a maximum dynamic working pressure of 6.3 bar.
For professional use, it is important to pair this impact wrench with a sufficiently large workshop air compressor, airline and high-flow couplings.
| Specification | Details |
|---|---|
| Brand | Chicago Pneumatic |
| Model | CP5000 |
| Product Type | Pneumatic Impact Wrench |
| Drive Size | 1" Square Drive |
| Anvil | Extended |
| Max Forward Working Torque | 2,800 Nm |
| Max Reverse Torque | 3,390 Nm / 2,500 ft-lbs |
| Min Forward Working Torque | 240 Nm |
| Free Speed | 3,700 RPM |
| Blows Per Minute | 540 BPM |
| Impact Mechanism | Pinless Rocking Dog |
| Handle | D-Handle |
| Power Settings | 4 Position |
| Air Inlet | 1/2" |
| Air Consumption at Load | 25 L/s |
| Maximum Dynamic Pressure | 6.3 Bar |
| Minimum Hose Diameter | 13mm for 5m hose |
| Weight | 16.2kg |
| Length | 572mm |
| Side Handle | Yes |
| Socket Retention | Dual |
| Sound Power | 114 dB(A) |
Specifications based on Chicago Pneumatic's published CP5000 technical information.
The Chicago Pneumatic CP5000 1" Drive Impact Wrench is built for professionals who need exceptional torque, durability and productivity from a pneumatic impact tool.
With 3,390 Nm of maximum reverse torque, a heavy-duty rocking-dog mechanism, extended 1" anvil, D-handle and four-position power control, it is an excellent choice for HGV workshops, truck tyre centres, agricultural workshops, fleet maintenance and heavy equipment servicing.
If you're looking for a high-torque 1" air impact wrench for trucks, tractors or heavy machinery, the CP5000 is designed specifically for this type of demanding work.
