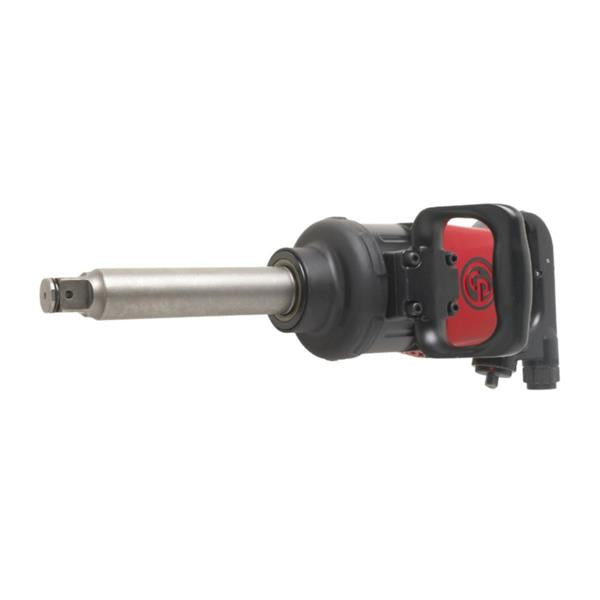

The Chicago Pneumatic CP7782-1 1" Drive Pneumatic Impact Wrench is a powerful, heavy-duty air impact wrench designed for demanding applications including truck and HGV tyre changing, agricultural machinery, heavy vehicles, fleet maintenance and industrial workshops.
With up to 2,600 Nm of maximum reverse torque, the CP7782 is built to tackle stubborn and heavily torqued wheel nuts and fasteners. Its durable aluminium housing and pinless closed reinforced rocking-dog impact mechanism provide excellent durability for professional workshop use.
The standout feature of the CP7782-1 is its impressive 2,600 Nm maximum reverse torque.

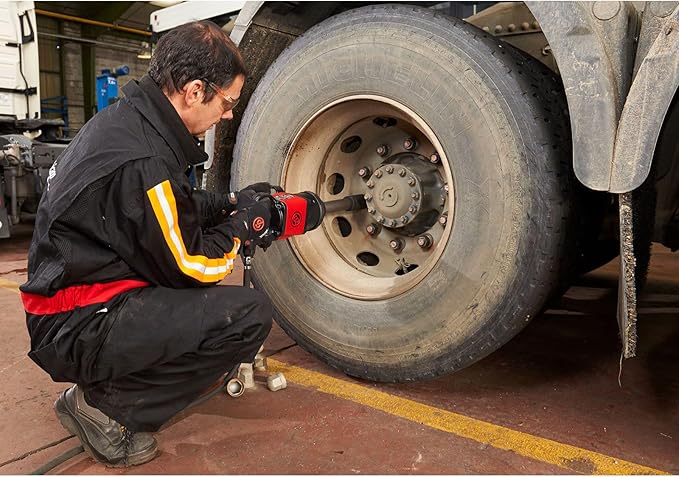

This makes it particularly suitable for removing stubborn wheel nuts and heavily tightened fasteners on HGVs, trucks, buses, agricultural machinery and other heavy equipment. Chicago Pneumatic specifically positions the CP7782 series for tyre-changing applications.
The forward working torque range is 500–2,000 Nm, providing substantial power for tightening and general maintenance applications.

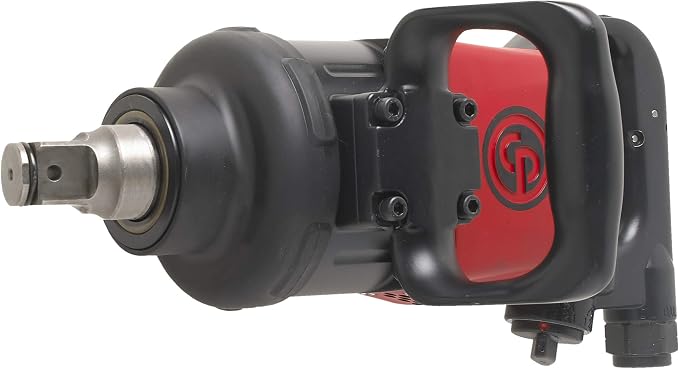

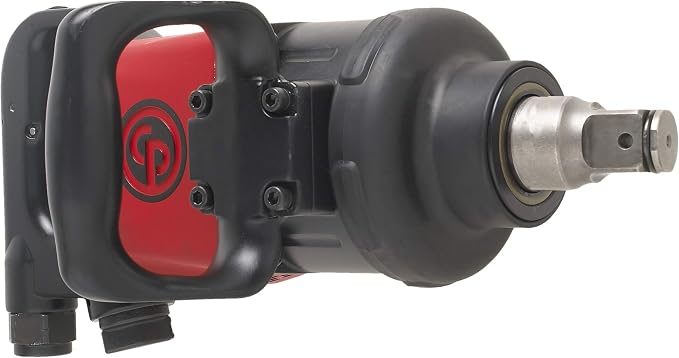

The CP7782 features a pinless closed reinforced rocking-dog impact mechanism, designed to provide high durability under demanding working conditions.
The metal construction and reinforced impact mechanism make this pneumatic impact wrench particularly well suited to professional garages, commercial vehicle workshops and industrial maintenance environments.

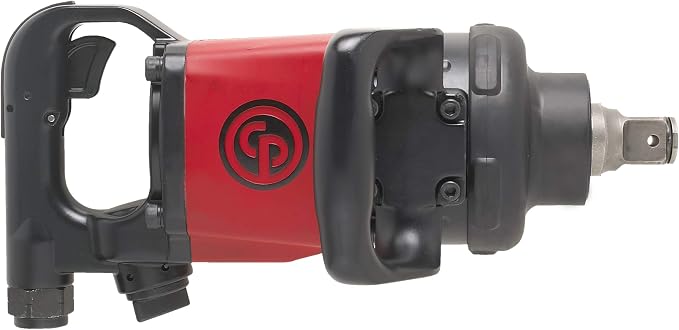

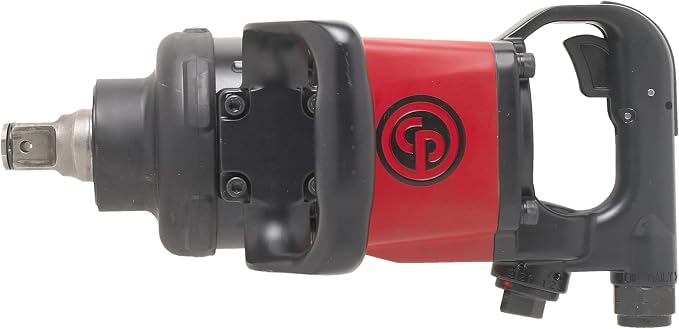

The D-handle configuration provides a secure and controlled grip when handling this high-torque impact wrench.
An additional side handle gives the operator improved control when applying substantial torque, making the tool more manageable during heavy-duty applications.
The rear-mounted regulator provides three power settings in forward and three in reverse, allowing the operator to select the appropriate level of impact power for the application.
This provides greater control than a basic on/off pneumatic impact wrench and helps adapt the tool to different fastening and removal tasks.
The CP7782-1 is particularly suitable for:
The CP7782 requires a substantial compressed-air supply to deliver its full performance.
It features a 1/2" air inlet, with a minimum recommended hose diameter of 13mm / 1/2" for a 5m hose. Air consumption at load is approximately 19 L/s, with the manufacturer's data specifying a maximum dynamic working pressure of 6.3 bar.
For best results, use the CP7782 with an appropriately sized workshop air compressor, high-flow airline and suitable couplings.
| Specification | Details |
|---|---|
| Brand | Chicago Pneumatic |
| Model | CP7782 |
| Part Number | 8941077820 |
| Product Type | Pneumatic Impact Wrench |
| Drive Size | 1" Square Drive |
| Forward Working Torque | 500–2,000 Nm |
| Maximum Reverse Torque | 2,600 Nm / 1,920 ft-lbs |
| Free Speed | 5,200 RPM |
| Blows Per Minute | 500 |
| Handle Type | D-Handle |
| Impact Mechanism | Pinless Closed Reinforced Rocking Dog |
| Air Inlet | 1/2" |
| Minimum Hose Diameter | 13mm / 1/2" |
| Dynamic Working Pressure | 6.3 Bar |
| Air Consumption at Load | 19 L/s |
| Weight | 10.1kg |
| Length | 370mm |
| Sound Pressure | 100 dB(A) |
| Vibration | 7.8 m/s² |
| Socket Retention | Dual |
| Power Settings | 3 Forward / 3 Reverse |
Specifications based on Chicago Pneumatic's published CP7782 information.
The Chicago Pneumatic CP7782-1 1" Drive Impact Wrench is built for users who need serious torque and durability from a professional pneumatic impact gun.
Its combination of 2,600 Nm maximum reverse torque, reinforced rocking-dog impact mechanism, D-handle, three-position power control and 1" drive makes it an excellent choice for heavy vehicle and industrial applications.
For truck garages, agricultural workshops, fleet operators, tyre centres and heavy equipment maintenance, the CP7782 provides the power needed for demanding fastening and wheel removal jobs.
