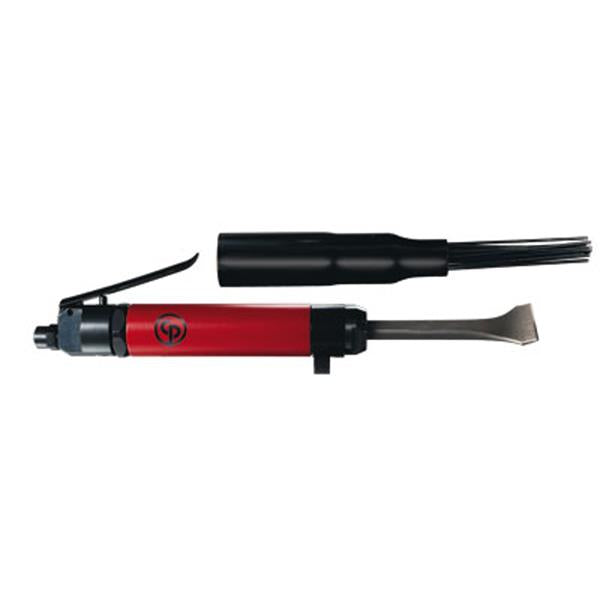

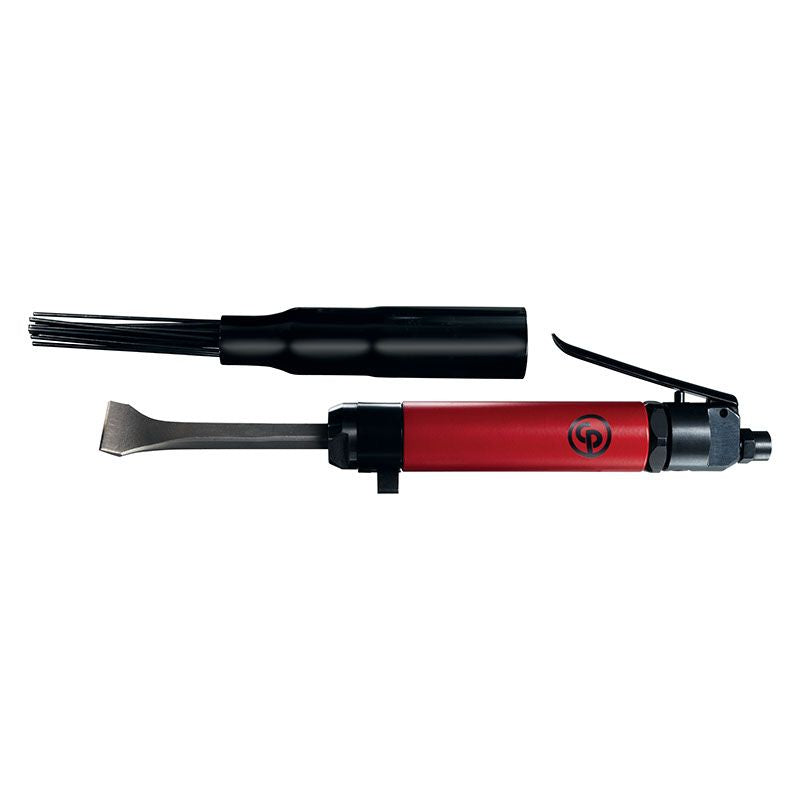

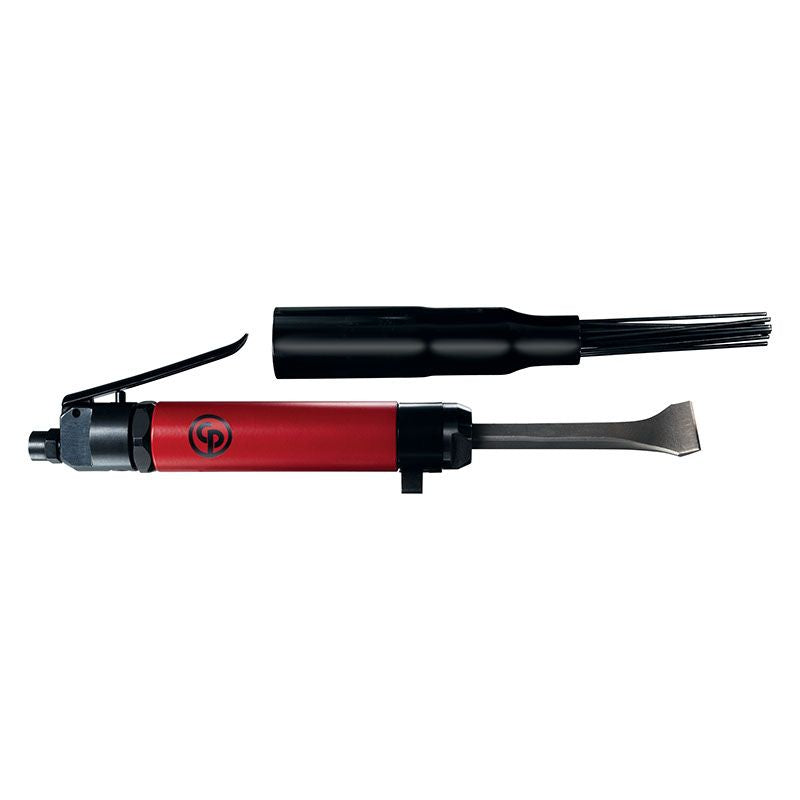

The Chicago Pneumatic CP7120 is a professional pneumatic needle scaler and chipping hammer designed for removing rust, scale, weld residue and other unwanted material from metal surfaces. Its convertible design allows the same air tool to be used for needle scaling or chipping, making it a versatile choice for vehicle repair, fabrication, agricultural machinery and general industrial maintenance.
Delivering 4,800 blows per minute with 5.3 Joules of impact energy, the CP7120 provides rapid impact action for demanding surface-preparation work. Supplied with 19 x 3mm steel needles and a 35mm chisel, it can be configured for different cleaning, preparation and material-removal tasks.
The CP7120 is designed to cover two common maintenance jobs without requiring separate pneumatic tools.
In needle scaler mode, the 19 steel needles rapidly impact the work surface to break away rust, paint, scale and other surface contamination. The needle arrangement is particularly useful when working on irregular or uneven metal surfaces.
For heavier chipping tasks, the tool can be converted to use the supplied 35mm chisel. This configuration is suitable for removing weld slag, flux and other unwanted material from metal components.
With a maximum operating speed of 4,800 blows per minute, the CP7120 provides rapid repeated impact for surface cleaning and material removal.
Its 5.3 Joule impact energy and 28.4mm stroke give the tool the capacity to tackle demanding workshop jobs, from preparing rusty components for repair through to cleaning weld areas and removing stubborn deposits.
The CP7120's needle-scaling configuration uses 19 steel needles measuring 3mm. An adjustable needle sleeve helps position and retain the needle assembly during operation.
Needle scaling is particularly useful for rust removal and surface preparation on metalwork with uneven profiles, where maintaining consistent contact with a conventional abrasive tool can be difficult.
Typical applications include cleaning steel components, preparing surfaces before painting and removing corrosion from machinery and vehicle parts.
When additional impact and concentrated material removal is required, the CP7120 can be converted to a chipping hammer using its quick-change chisel retainer.
The supplied 35mm wide chisel has a 12.7mm (1/2") square shank, providing a practical setup for chipping and cleaning applications including weld slag and other unwanted deposits.
The Chicago Pneumatic CP7120 operates from a compressed-air supply through its 1/4" air inlet. Maximum dynamic working pressure is specified at 6.3 bar / 90 PSI, with air consumption of approximately 7.4 L/s or 15 CFM under load.
For reliable operation, the air compressor and airline should be capable of supplying the required Free Air Delivery (FAD). Chicago Pneumatic specifies a minimum 10mm internal hose diameter for a 5m hose.
Using an appropriately sized compressor, hose and air fittings helps maintain consistent performance during longer periods of pneumatic scaling and chipping.
The Chicago Pneumatic CP7120 pneumatic needle scaler is suitable for a wide range of professional maintenance tasks, including:
Its combination of needle scaling and chipping capability makes it particularly useful where a workshop regularly deals with corroded metal, weld deposits and heavy surface contamination.
| Specification | Details |
|---|---|
| Brand | Chicago Pneumatic |
| Model | CP7120 |
| Product Type | Pneumatic Needle Scaler / Chipping Hammer |
| Blows Per Minute | 4,800 BPM |
| Impact Energy | 5.3 Joules |
| Stroke | 28.4mm |
| Needle Set | 19 x 3mm |
| Chisel Width | 35mm |
| Chisel Shank | 12.7mm / 1/2" Square |
| Air Inlet | 1/4" |
| Air Consumption | 7.4 L/s / approx. 15 CFM under load |
| Maximum Working Pressure | 6.3 bar / 90 PSI |
| Minimum Hose Diameter | 10mm for 5m hose |
| Starting System | Lever |
| Weight | 2.8kg |
| Vibration | 11.4 m/s² |
| Sound Pressure | 99 dB(A) |
The Chicago Pneumatic CP7120 Straight Needle Scaler / Chipping Hammer is a useful addition to professional workshops where rust, scale, weld residue and surface contamination need to be removed regularly.
Rather than carrying separate tools for scaling and chipping, the CP7120 provides both functions in one compact pneumatic unit. Its 4,800 BPM operating speed, 5.3 Joule impact energy, 19-needle configuration and quick-change chisel system make it suitable for demanding maintenance work across automotive, agricultural, fabrication and industrial environments.
With over 40 years of experience supplying tools and equipment, Conlan Oils supports professional, trade, automotive, agricultural and industrial customers with products suited to demanding working environments.
For customers looking for a Chicago Pneumatic needle scaler, pneumatic rust remover, air chipping hammer or surface preparation.
📞 Can't Find What You're Looking For......Need Advice?
If you can't find the product you need on our website, contact us and we'll be happy to help. We can often source and order items that aren't currently listed online.
Call 059 8632494 or email enquiry@conlanoils.com.
Click & Collect is available during all shop opening hours
FREE delivery for all order over €150 inc Vat placed online in Ireland, This excludes BULKY ITEMS (Pallet deliveries) T&C apply.
If you place an order online, we will contact you if any of your items are out of stock with current lead times or alternatives if suitable.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
Needle Scaler / Chisel
CP7120
|
Out of stock | ||
|

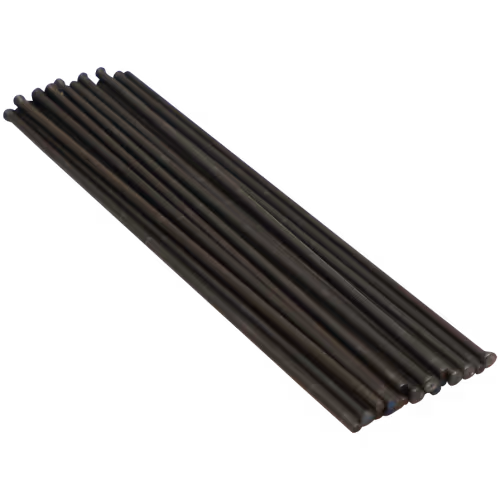

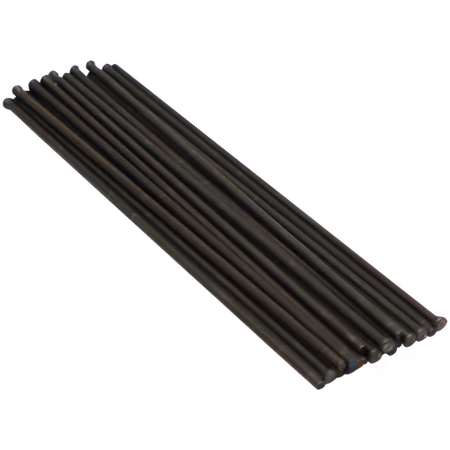

Replacement 3mm Needle Set (28)
