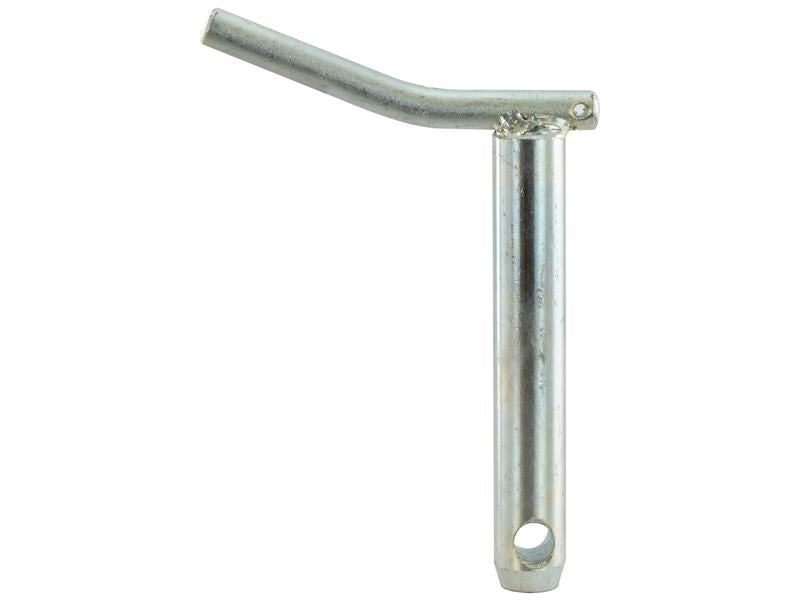

The Sparex S.8859 Cranked Shear Pin is a durable Category 1 double shear lower link pin, designed for use with tractors, agricultural machinery and three-point linkage systems. Manufactured from EN8 steel, it provides a strong and reliable connection for lower linkage applications.
With a 22mm diameter, 123mm working length and 138mm overall length, the S.8859 is a standard-duty replacement linkage pin suitable for a wide range of agricultural machinery. It features a 115mm handle and 12mm retaining hole for secure fitting.
| Specification | Details |
|---|---|
| Brand | Sparex |
| Part Number | S.8859 |
| Product Type | Lower Link Pin |
| Pin Type | Double Shear |
| Category | Cat. 1 |

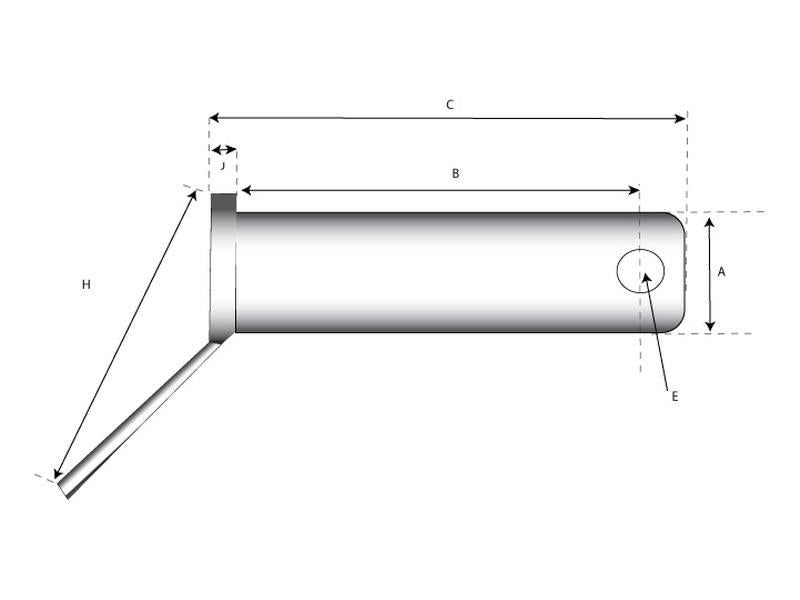

| Pin Diameter | 22mm / 7/8" |
| Working Length | 123mm / 4-27/32" |
| Overall Length | 138mm / 5-7/16" |
| Handle Length | 115mm / 4-17/32" |
| Hole Diameter | 12mm / 1/2" |
| Material | EN8 Steel |
| Duty | Standard |
| Weight | 0.53kg |
| EAN | 5023495088594 |
| Tariff Code | 7319909000 |
Please check the pin diameter, working length and retaining hole dimensions against your existing linkage pin before ordering.
