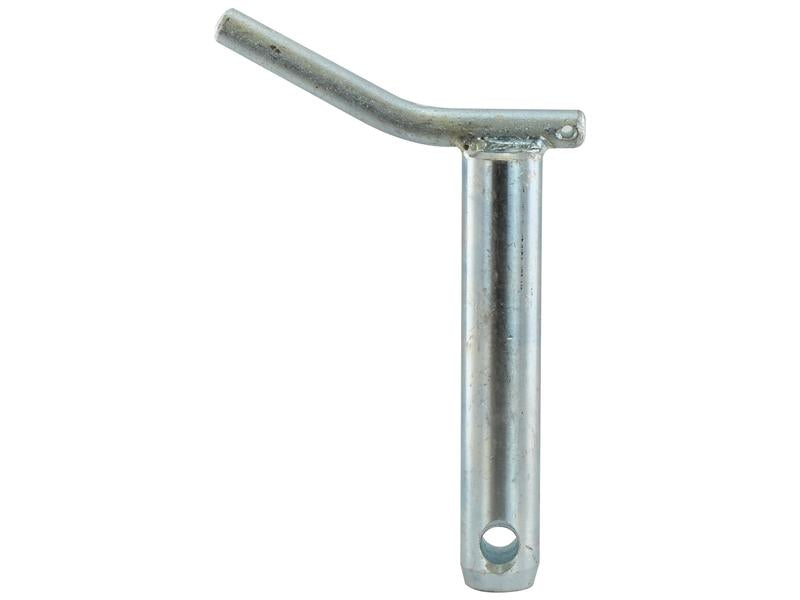

The Sparex S.8860 Cranked Shear Pin is a robust Category 2 top link pin designed for tractors and agricultural machinery. With a 25mm diameter, 123mm working length and double shear design, it provides a strong and reliable connection for tractor three-point linkage systems. Sparex specifies the pin as being manufactured from EN8 steel for strength and durability.

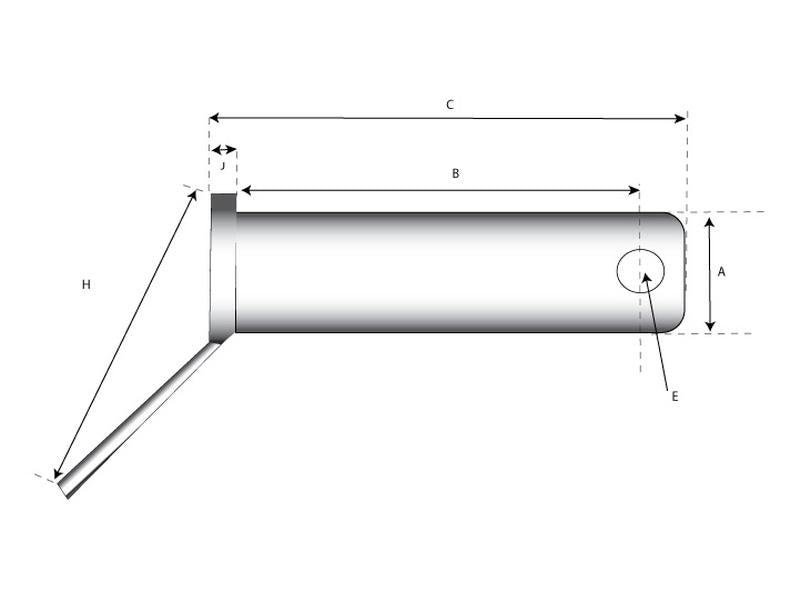

This 25 x 123mm top link pin has a 138mm overall length, 115mm handle length and 12mm retaining hole, making it suitable as a replacement linkage pin for a wide range of agricultural applications. It is a universal component and is not associated with a specific tractor make or model.
| Specification | Details |
|---|---|
| Brand | Sparex |
| Part Number | S.8860 |
| Product Type | Top Link / Double Shear Pin |
| Category | Cat. 2 |
| Pin Diameter | 25mm / 1" |
| Working Length | 123mm / 4-27/32" |
| Overall Length | 138mm / 5-7/16" |
| Handle Length | 115mm / 4-1/2" |
| Hole Diameter | 12mm / 1/2" |
| Head Diameter | 5mm |
| Material | EN8 Steel |
| Pin Type | Double Shear |
| Duty | Standard |
| EAN | 5023495088600 |
| Tariff Code | 7319909000 |
Please check the pin diameter, working length and retaining hole dimensions against your existing linkage pin before ordering.
