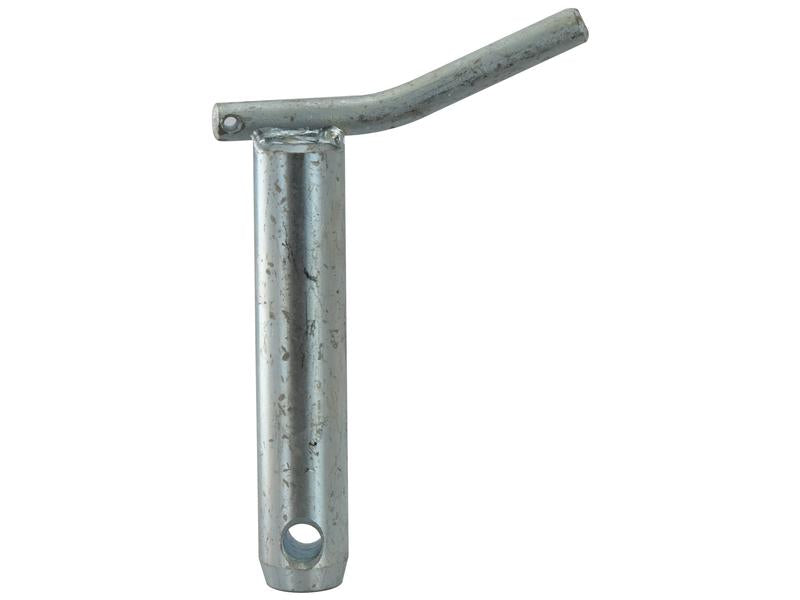

The Sparex S.8861 Lower Link Pin is a robust Category 2 double shear linkage pin, designed for use with tractors and agricultural machinery. Manufactured from EN8 steel, this 28mm diameter pin provides a strong and reliable connection for lower link arms and three-point linkage applications.

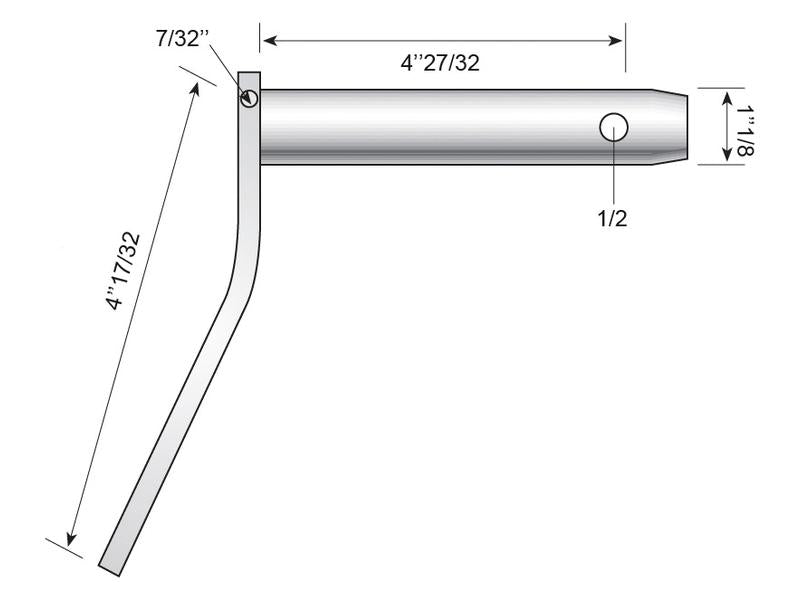

With a 123mm working length and 138mm overall length, the S.8861 is a standard-duty replacement lower link pin suitable for a wide range of agricultural machinery. The pin features a 115mm handle and a 12mm retaining hole.

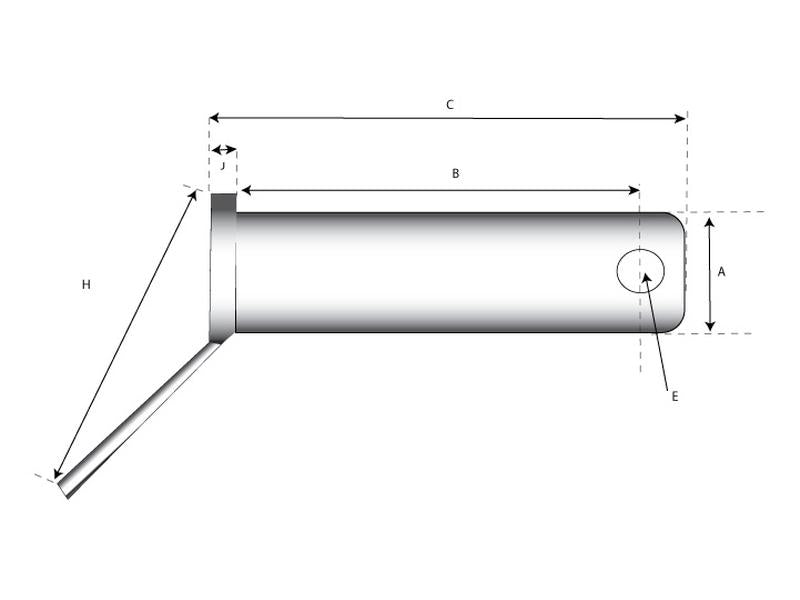

| Specification | Details |
|---|---|
| Brand | Sparex |
| Part Number | S.8861 |
| Pin Type | Double Shear |
| Category | Cat. 2 |
| Pin Diameter | 28mm / 1-1/8" |
| Working Length | 123mm / 4-27/32" |
| Overall Length | 138mm / 5-7/16" |
| Handle Length | 115mm / 4-17/32" |
| Hole Diameter | 12mm / 1/2" |
| Material | EN8 Steel |
| Duty | Standard |
| EAN | 5023495088617 |
| Tariff Code | 7319909000 |
Compatibility: This is a universal linkage component and is not associated with a particular tractor make, model or OEM part number.
