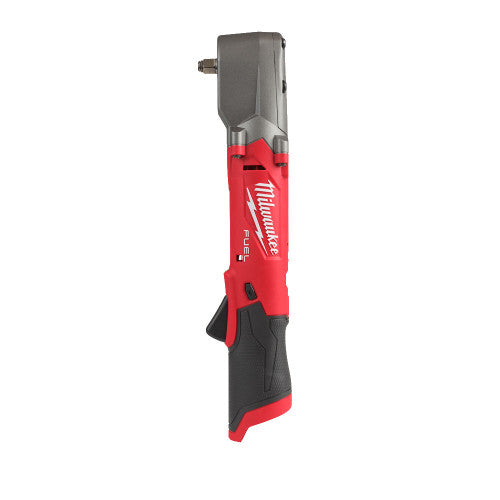

Milwaukee M12 FUEL™ Right Angle Impact Wrench 1/2" M12FRAIWF12-0 – Body Only
The Milwaukee M12 FUEL™ Right Angle Impact Wrench 1/2" M12FRAIWF12-0 combines the compact size and accessibility of a ratchet with the powerful performance of an impact wrench. Delivering up to 270 Nm of fastening torque and 300 Nm of nut-busting torque, it is designed for professional mechanics, agricultural engineers, technicians and tradespeople working in confined spaces.

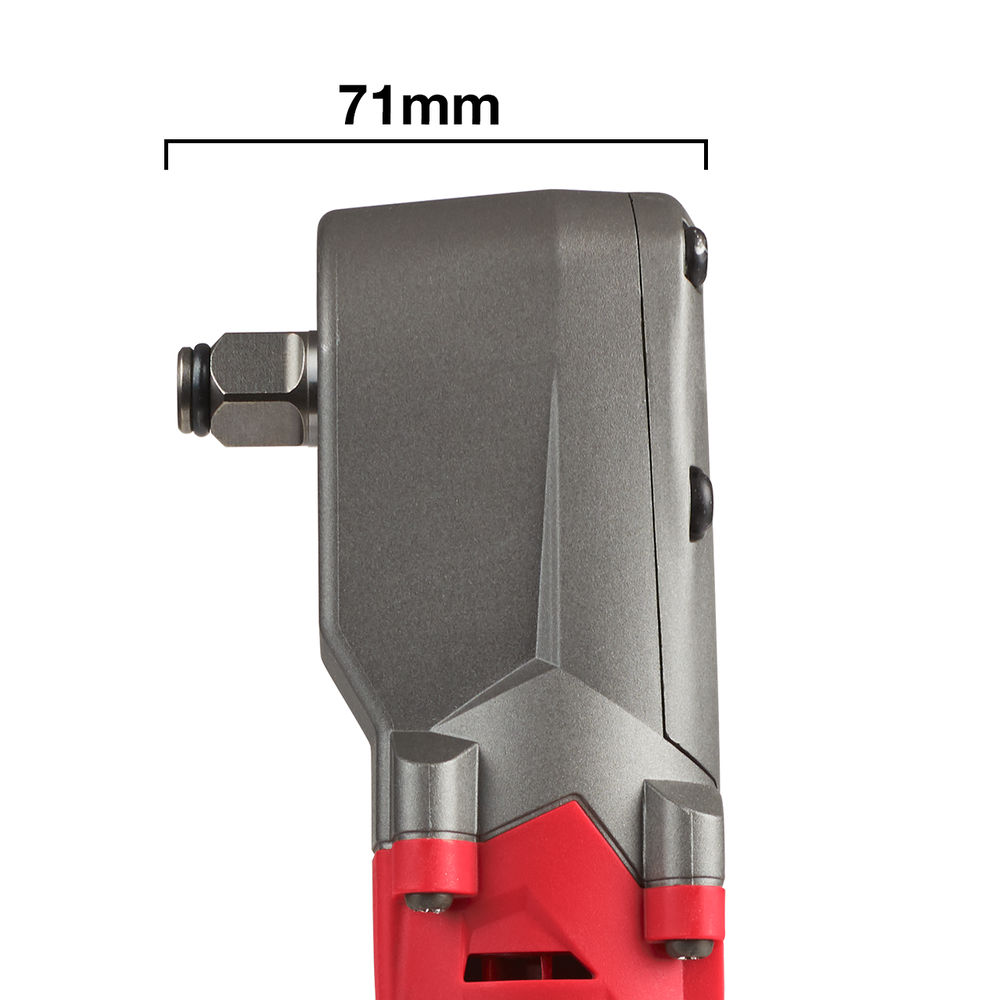

The compact 71mm head and extended right-angle body provide excellent access around awkwardly positioned fasteners, while the 1/2" square friction ring anvil allows fast and easy socket changes.
With 4-Mode DRIVE CONTROL, users can select the appropriate speed and torque for the application. Auto Shut-Off Mode helps prevent over-tightening, while Bolt Removal Mode provides greater control after a fastener has broken loose by reducing the tool's speed.
Milwaukee's POWERSTATE™ brushless motor, REDLITHIUM™ battery technology and REDLINK PLUS™ intelligence deliver reliable cordless performance, durability and protection in demanding working environments.
Key Features
- Compact size of a ratchet with the torque of an impact wrench
- Powerful 270 Nm maximum fastening torque
-
300 Nm nut-busting torque for stubborn fasteners
- Compact 71mm head for improved access in tight spaces
- Extended right-angle body provides additional reach
-

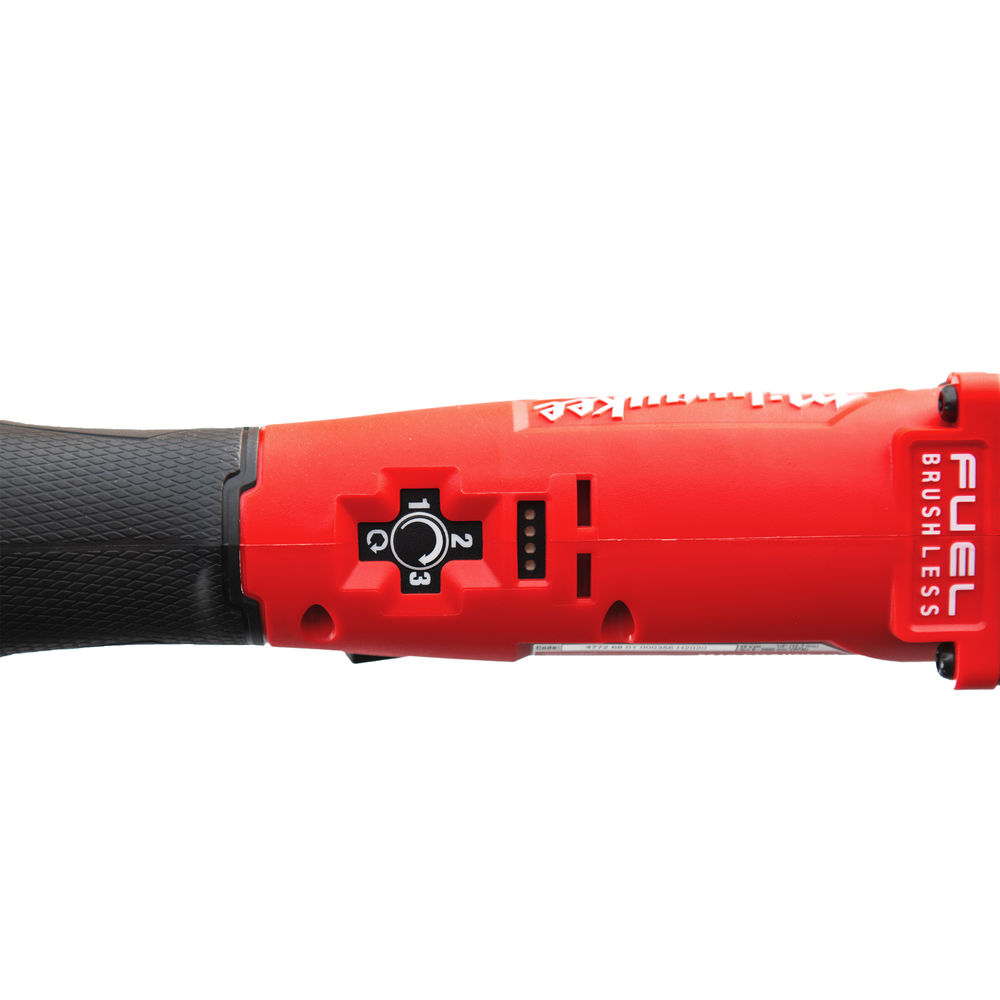

4-Mode DRIVE CONTROL for adjustable speed and torque
- Auto Shut-Off Mode helps prevent over-tightening
- Bolt Removal Mode improves control after bolt breakaway
-
1/2" square drive with friction ring for quick socket changes
- Bright integrated LED work light for improved visibility
- Premium rubber overmold provides increased comfort and protection against corrosive materials
- POWERSTATE™ brushless motor delivers high performance under load
- REDLINK PLUS™ electronic intelligence optimises tool performance and protection
- Compatible with all Milwaukee M12™ batteries
Specifications
| Specification |
Details |
| Model |
M12FRAIWF12-0 |
| Part Number |
4933471699 |
| Battery Platform |
Milwaukee M12™ |
| Motor Type |
Brushless |
| Tool Reception |
1/2" square |
| Max. Fastening Torque |
270 Nm |
| Max. Torque |
270 Nm |
| Nut-Busting Torque |
300 Nm |
| Max. Bolt Diameter |
M16 |
| No-Load Speed |
0–1150 / 0–2300 / 0–3000 / 3000 rpm |
| Impact Rate |
0–1350 / 0–2700 / 0–3600 ipm |
| Tool Length |
337.8mm |
| Head Size |
71mm |
| Vibration |
11.25 m/s² |
| Vibration Uncertainty |
1.5 m/s² |
| LED |
Yes |
Applications

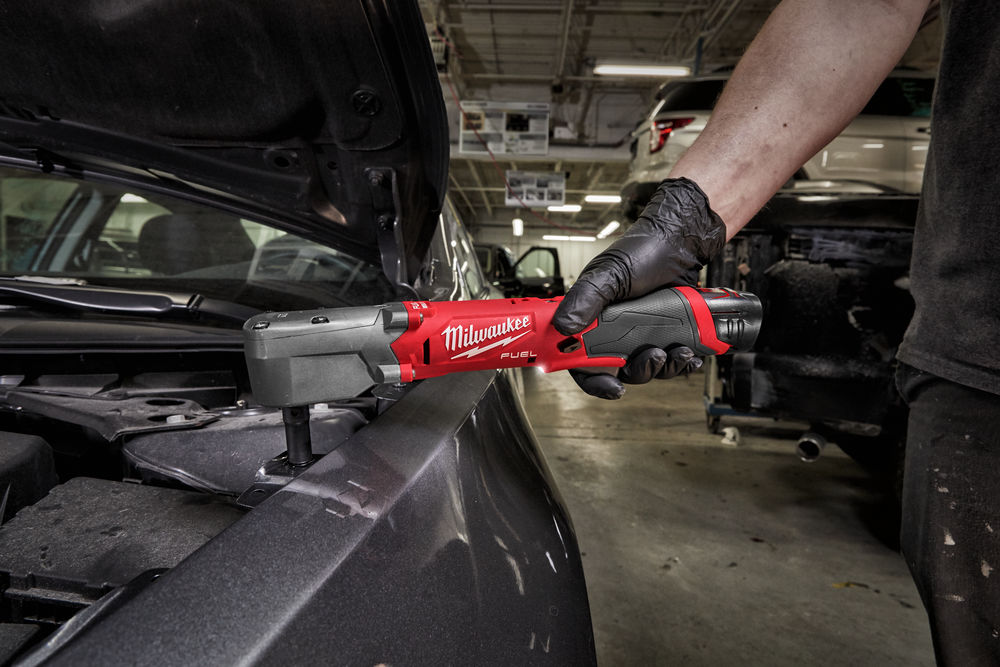

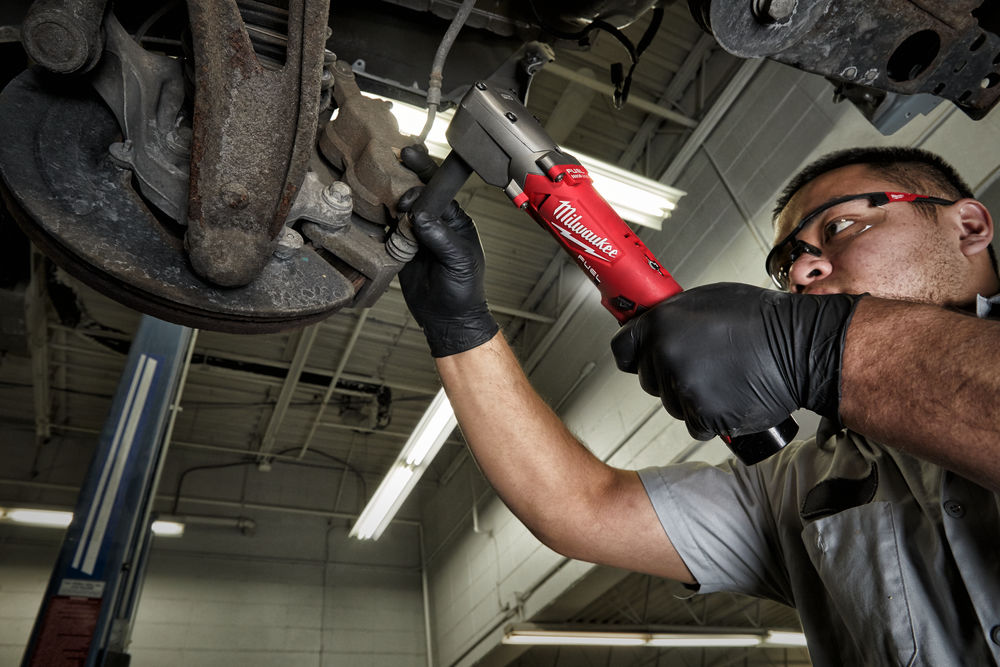

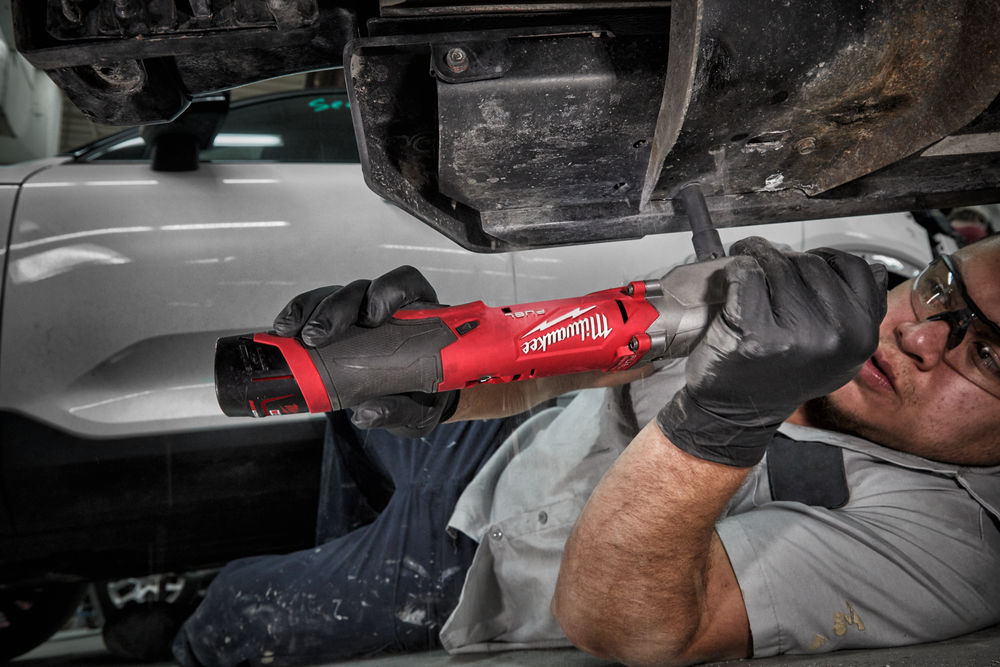

The Milwaukee M12 FUEL™ Right Angle Impact Wrench is ideal for:
- Automotive servicing and repairs
- Agricultural machinery maintenance
- Mechanical workshops
- Vehicle maintenance
- Machinery servicing
- Construction and installation
- Engine repairs
- Professional technicians and mobile mechanics

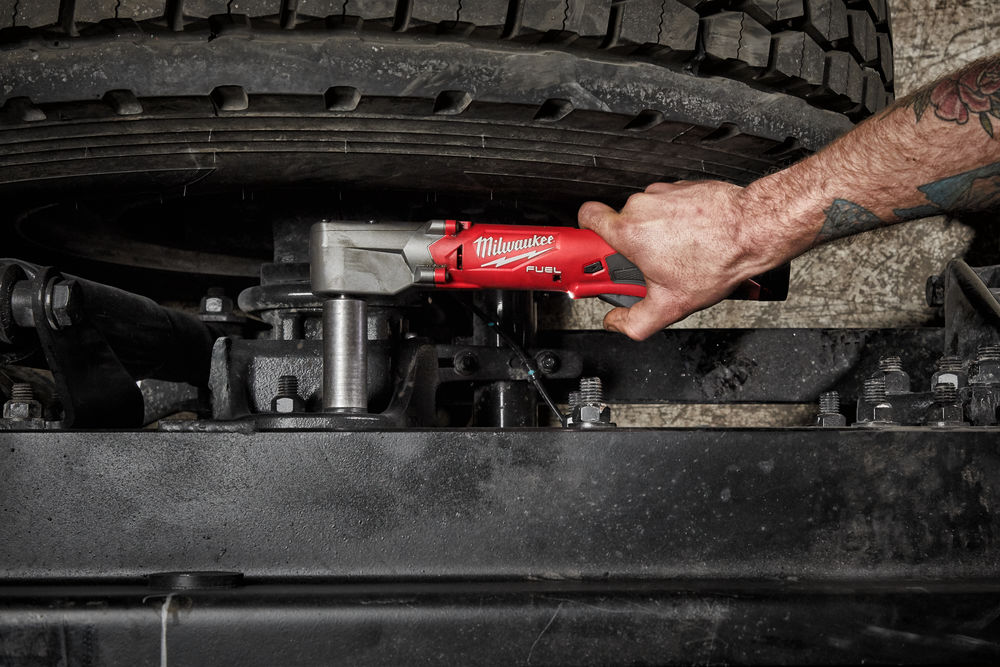

- Fasteners in confined and difficult-to-reach areas
FUEL™ Technology
Milwaukee FUEL™ technology combines the POWERSTATE™ brushless motor, REDLITHIUM™ battery pack and REDLINK PLUS™ electronic intelligence to provide outstanding power, runtime, durability and tool protection.
Important Information
BODY ONLY – BATTERY & CHARGER NOT INCLUDED.
Compatible with all Milwaukee M12™ batteries.
Milwaukee M12FRAIWF12-0 – compact right-angle access with 270 Nm of fastening torque and 300 Nm of nut-busting power.
