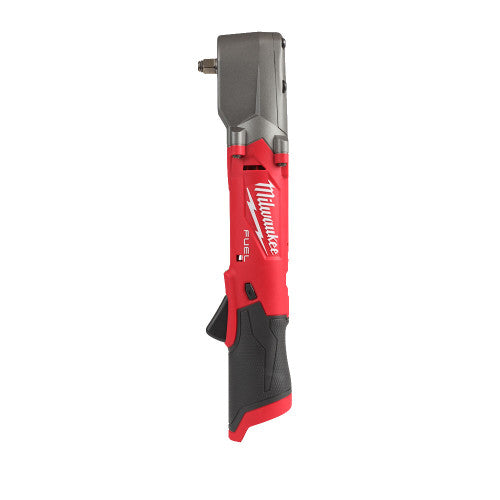

Milwaukee M12 Fuel RIGHT ANGLE IMPACT WRENCH 3/8" M12FRAIWF38-0
The Milwaukee M12 Fuel Right Angle 3/8" Impact Wrench delivers up to 270 Nm of fastening torque and 300 Nm of nut-busting torque. Its 4-Mode DRIVE CONTROL includes Auto Shut-Off and Bolt Removal Modes to prevent over-tightening and offer more control. With a long body profile and a 71 mm head with anvil design, it provides superior access in tight spaces. Features include a 3/8" anvil with friction ring, bright LED workspace illumination, and a premium rubber overmold. Powered by Milwaukee’s POWERSTATE™ brushless motor, REDLITHIUM™ battery, and REDLINK PLUS™ intelligence system for outstanding performance and durability.
Features
- The Milwaukee Right Angle Impact Wrench has the Ccompact size of a Ratchet with the Torque of an Impact Wrench
- 3/8 inch square drive tool reception.
- Ideal when you need Extended room when working in Tight Spaces
- Delivers up to 270 Nm fastening torque and 300 Nm nut-busting torque.

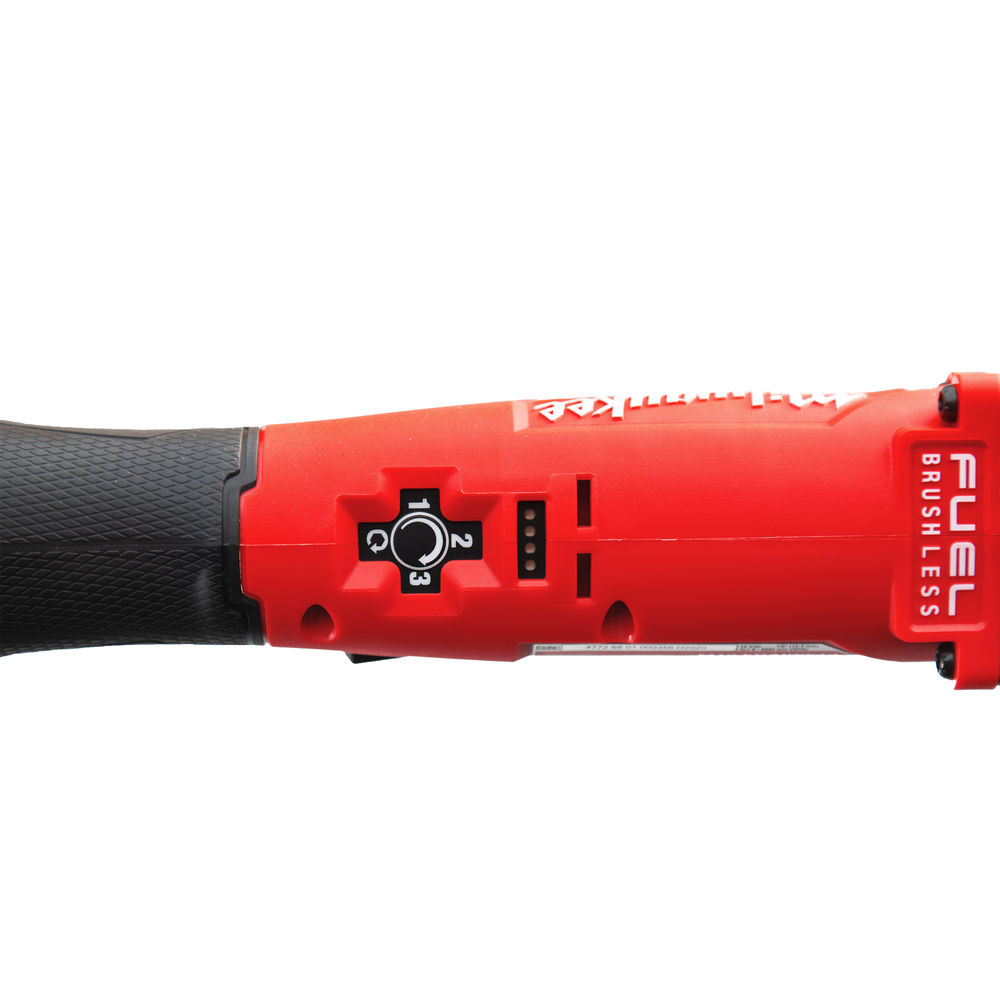

- 4-Mode DRIVE CONTROL includes Auto Shut-Off Mode and Bolt Removal Mode which prevents over-tightening and provides more control after bolt breakaway.
- The long body profile allows for more access in hard to reach spaces.
- Only 71 mm head with anvil profile design allows for more access in tight spaces.
- 3/8" anvil with friction ring for quick and easy socket changes.
- Bright LED workspace illumination.
- Premium rubber overmold withstands corrosive materials and provides increased comfort when in use.
- Integrates three MILWAUKEE®-exclusive technologies - the POWERSTATE™ brushless motor, REDLITHIUM™ battery pack and REDLINK PLUS™ intelligence hardware and software - which deliver outstanding power, run time and durability on the jobsite.
- Flexible battery system: works with all MILWAUKEE® M12™ batteries.
- LED : Yes
- Tool length : 337.8 mm
-
BODY ONLY - BATTERY & CHARGER NOT INCLUDED
- Part Number M12FRAIWF38-0
Specifications
| IMPACT RATE (IPM) |
0-1350/ 0-2700/ 0-3600 |
| MAX. BOLT DIAMETER |
M16 |
| MAX. FASTENING TORQUE (NM) |
270 |
| MAX. TORQUE (NM) |
270 |
| NO LOAD SPEED (RPM) |
0-1550/ 0-2300/ 0-3000/ 0-3000 |
| NUT-BUSTING TORQUE (NM) |
300 |
| TOOL RECEPTION |
⅜″ square |
| SOUND POWER LEVEL (LWA)(DB(A)) |
107.55 |
| SOUND POWER LEVEL UNCERTAINTY (DB(A)) |
3 |
| SOUND PRESSURE LEVEL (LPA)(DB(A)) |
96.55 |
| SOUND PRESSURE LEVEL UNCERTAINTY (DB(A)) |
3 |
| VIBRATION IMPACT TIGHTENING OF FASTENERS OF THE MAXIMUM CAPACITY OF THE TOOL [M|S²] |
12.68 |
| Motor Type |
Brushless |
