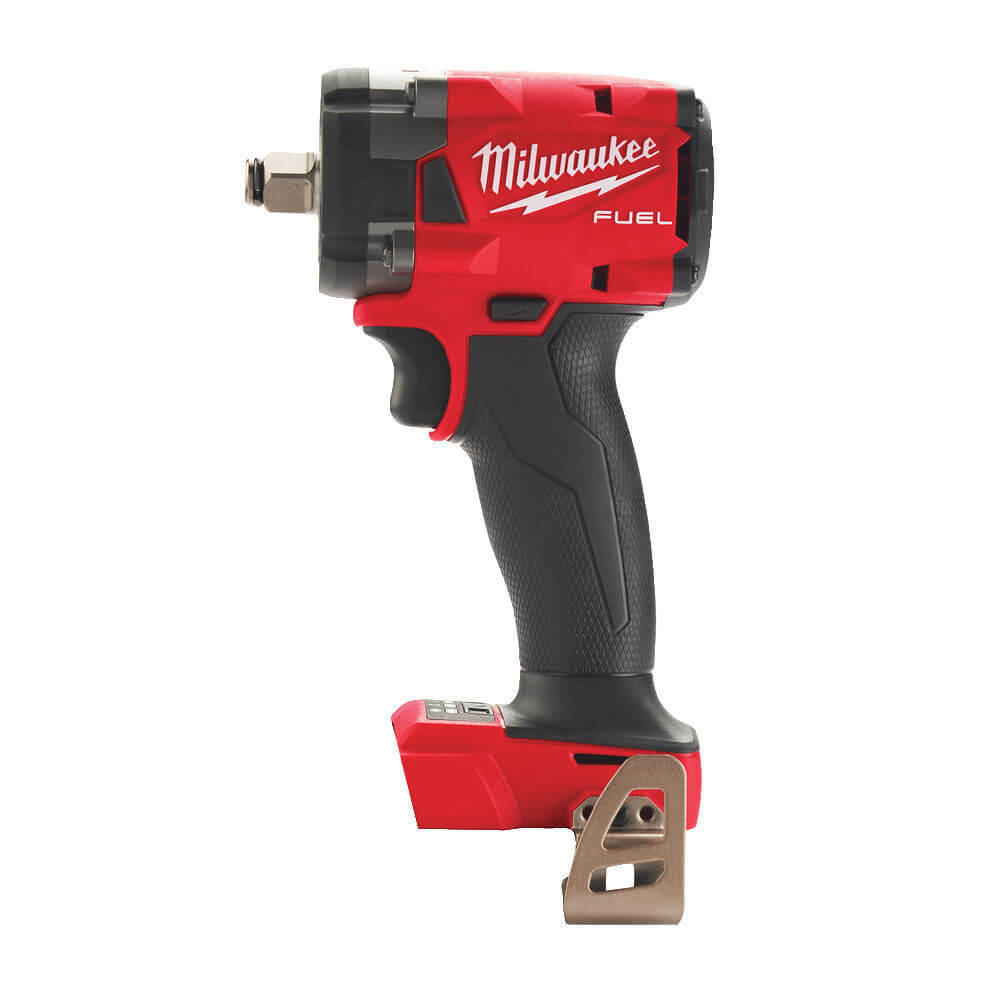

Milwaukee M18 Fuel Compact Impact Wrench 3/8" M18FIW2F38-0
This Milwaukee M18 Fuel 3/8" Compact Impact Wrench is an efficient and powerful cordless power tool designed for versatility and performance. This body-only model includes a belt hook but is supplied without batteries or a charger. Featuring an outstanding torque of 339 Nm and an extremely compact design with a total length of just 124 mm, this impact wrench provides easy access to tight spaces. The 4-Mode DRIVE CONTROL allows you to switch between four speed and torque settings, maximizing application versatility. The bolt removal control delivers full torque output, then reduces RPMs to prevent fastener drops. The auto shut-off control applies no more than 34 Nm of torque for hand-tight applications, preventing over-tightening. With tri-LEDs for high-definition lighting, a reversible belt hook, and the integration of Milwaukee's POWERSTATE™ brushless motor, REDLITHIUM™ battery pack, and REDLINK PLUS™ intelligence, this tool delivers exceptional power, run time, and durability.
Features
- Power efficiency under load - outstanding torque of 339 Nm With 3/8" Drive
- Extremely compact design - total length of just 124 mm for access into tight spaces.
- 4-Mode DRIVE CONTROL allows the user to shift into four different speed and torque settings to maximise application versatility.
- Bolt removal control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops.
- Auto shut-off control applies no more than 34 Nm of torque for hand-tight fastening applications to prevent over tightening.

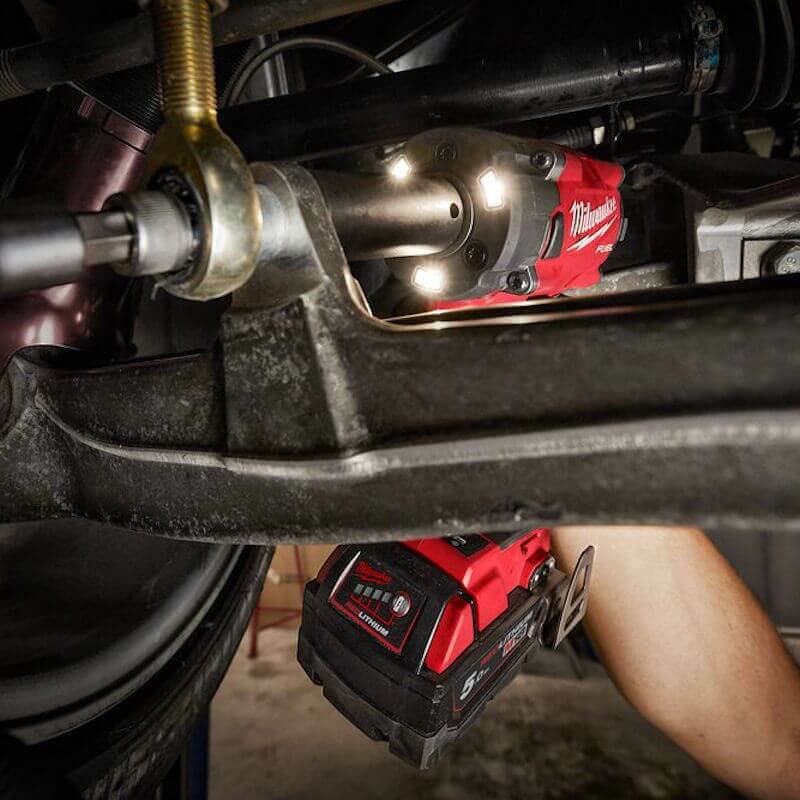

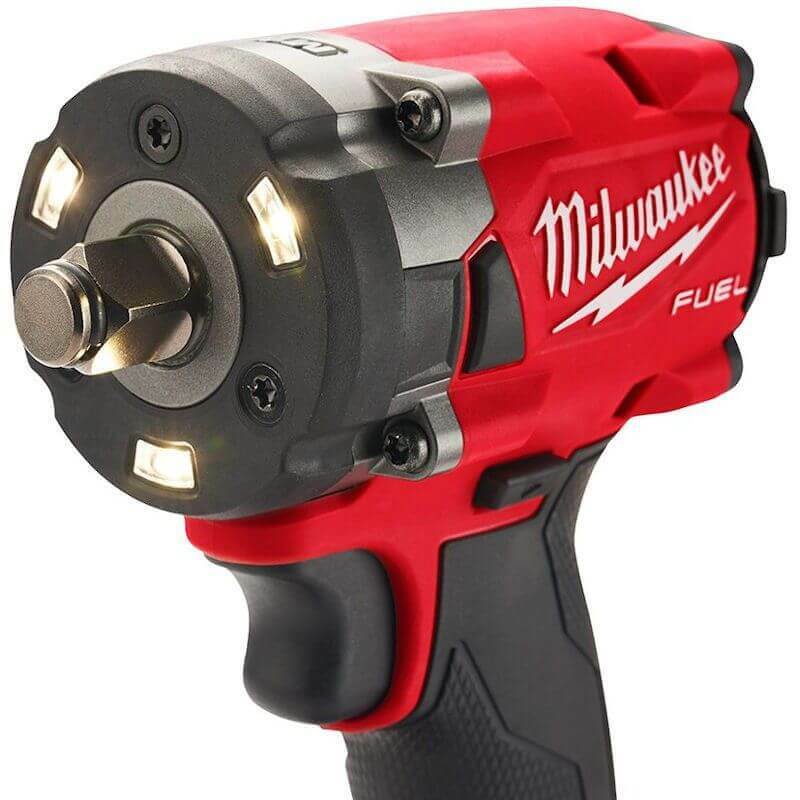

- Tri-LEDs deliver high definition lighting to increase workspace visibility.
- 1/2" square friction ring.
- Reversible belt hook.
- Integrates three MILWAUKEE®-exclusive technologies - the POWERSTATE™ brushless motor, REDLITHIUM™ battery pack and REDLINK PLUS™ intelligence hardware and software - which deliver outstanding power, run time and durability on the jobsite.
- Flexible battery system: works with all MILWAUKEE® M18™ batteries.
- Includes belt hook.
- LED light : Yes (x3)
- Tool length : 124 mm
- Battery pack capacity : n/a
- Battery type : Li-ion

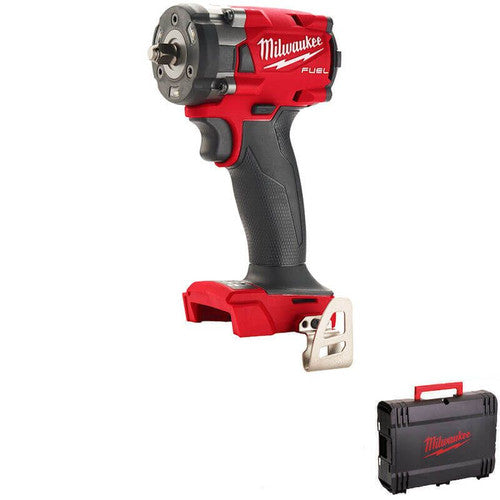

- Supplied Body Only Supplied in Case
- Part Number M18FIW2F38-0x | 4933478650
Specifications
| IMPACT RATE (IPM) |
0-1000/ 0-2400/ 0-3500 |
| MAX. BOLT DIAMETER |
M16 |
| MAX. FASTENING TORQUE (NM) |
339 |
| MAX. TORQUE (NM) |
102/ 203/ 339/ 34 |
| NO LOAD SPEED (RPM) |
0-800/ 0-1650/ 0-2400/ 0-1000 |
| NUT-BUSTING TORQUE (NM) |
339 |
| SUPPLIED IN |
HD Box |
| TOOL RECEPTION |
⅜″ square |
| SOUND POWER LEVEL (LWA)(DB(A)) |
110.79 |
| SOUND POWER LEVEL UNCERTAINTY (DB(A)) |
3 |
| SOUND PRESSURE LEVEL (LPA)(DB(A)) |
99.79 |
| SOUND PRESSURE LEVEL UNCERTAINTY (DB(A)) |
3 |
| VIBRATION IMPACT TIGHTENING OF FASTENERS OF THE MAXIMUM CAPACITY OF THE TOOL [M|S²] |
17.24 |
| VIBRATION IMPACT TIGHTENING OF FASTENERS OF THE MAXIMUM CAPACITY OF THE TOOL UNCERTAINTY [M|S²] |
1.5 |
| Motor Type |
Brushless |
