Milwaukee M18 Fuel Magnetic Drill Press Kit M18FMDP-502C

SKU: M18FMDP-502C
(0)
€1.574,95 inc. VAT
In stock
Shipping Mon - Fri Only
100% secure payments
Industry leading quality

Got questions? Feel free to get in touch

Tel: 059 8632494

Email: enquiry@conlanoils
https://conlanoils.com/

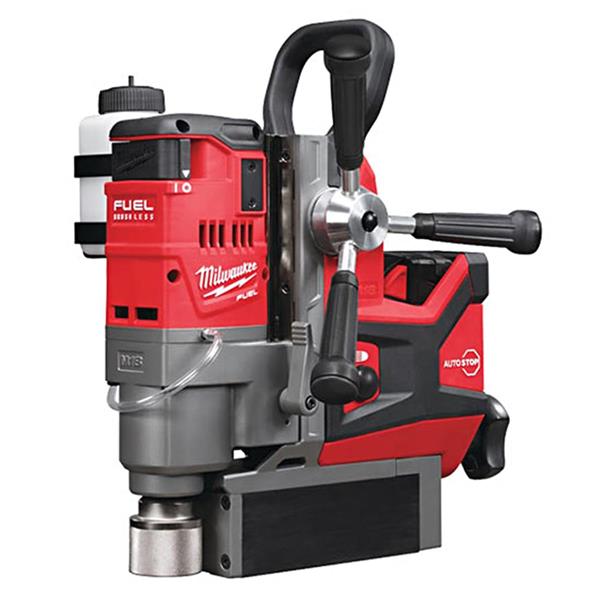

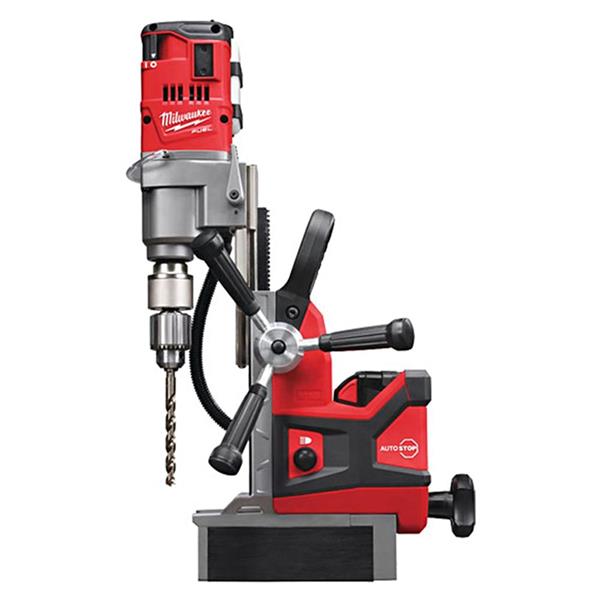

Milwaukee M18 Fuel Magnetic Drill Press Kit M18FMDP-502C

The Milwaukee M18 Fuel Magnetic Drill Press M18FMDP delivers corded drilling performance with FUEL™ technology, featuring the strongest magnet holding force on ¼″ steel and 40 x 18 mm holes per battery charge. It includes AUTOSTOP™ lift-off detection for enhanced user protection. The self-powered permanent magnet offers 8,890 N holding force, preventing accidental deactivation. With a 2-speed gearbox (400 and 690 rpm), it optimizes drilling with annual cutters and twist drill bits. Key features include a keyless 19 mm Weldon reception, onboard magnet lubrication tank, 146 mm stroke length, tool-free detachable handle, and onboard LED light for work surface illumination.

Features

  • One of the first Battery Power Magnetic drill on the Market with Auto Stop and Self  Powered Magnetic with 8900Nm of Holding Force
  • Milwaukee® designed and built brushless POWERSTATE™ motor provides corded drilling performance with strongest magnet holding force on ¼˝ steel and 40 x 18 mm holes per battery charge.
  • 146 mm stroke length for usage of different accessories.

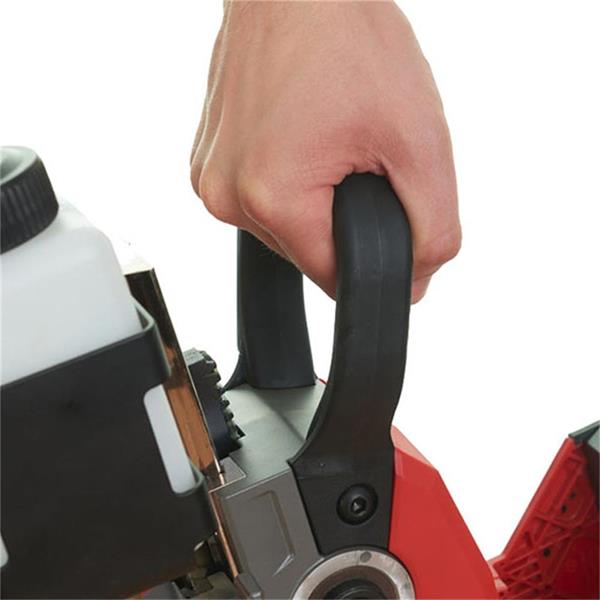

  • Tool-free detachable handle for right or left hand usage.

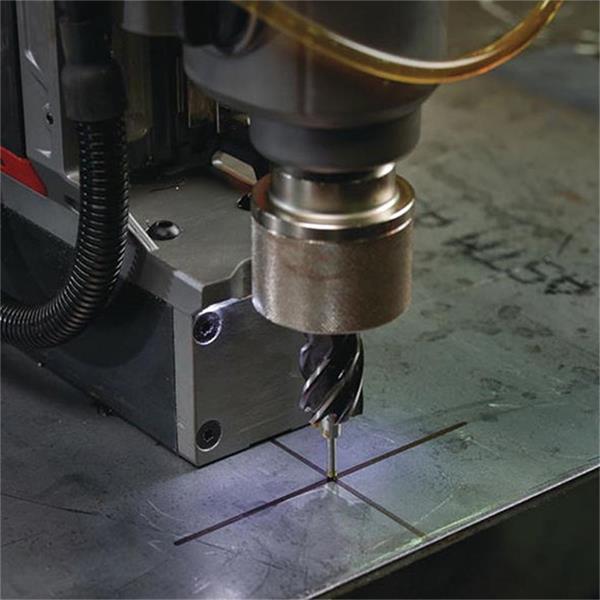

  • On board LED light to illuminate the work surface.
  • REDLINK PLUS™ intelligence system delivers the most advanced digital overload and blade lock-up protection and uniquely enhances the tool performance under load.
  • REDLITHIUM-ION™ battery pack delivers up to 2.5x more run time, up to 20% more power, up to 2x more battery life and operates better down to -20°C than other lithium-ion technologies.
  • AUTOSTOP™ lift-off detection: Detects excess rotation and automatically cuts power to the drill for best user protection.
  • Self-powered permanent magnet with 8,890 N of holding force prevent accidental magnet deactivation for improved user protection and easy alignment.
  • 2 speed gear box for optimised drilling speed with 400 and 690 RPM's when using annual cutters or twist drill bits.
  • Maximum drilling capacity of 38 mm with use of annual cutters and 13 mm straight shank twist drill bits.
  • Keyless 19 mm Weldon reception for fast and easy accessory change.
  • On board magnet lubrication tank for fixing on the machine or on the material, especially when drilling in vertical positions.
  • Supplied with : 2x 5.0Ah li-ion batteries, fast charger & kit box
  • Part Number M18FMDP-502C

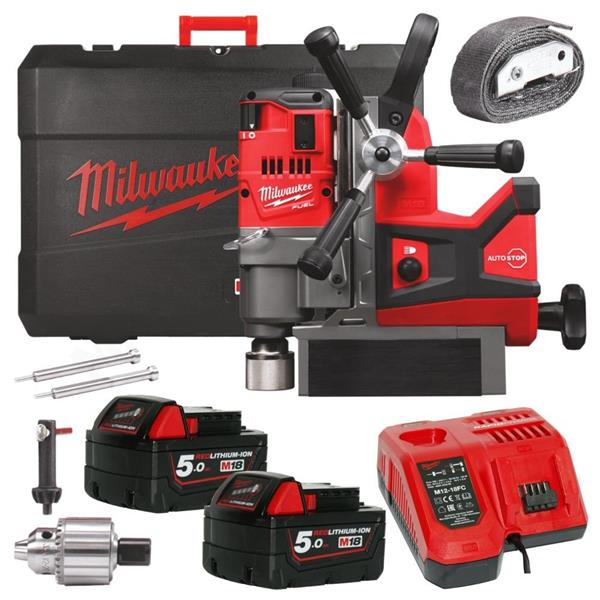

Kit Includes
  • Milwaukee M18 Fuel Magnetic Drill Press
  • 2 x 5.0Ah Batteries
  • Charger
  • Kitbox

Specifications

MAGN. HOLDING POWER (AT DRILL POINT PRESSURE) (N) 8890
MAX. DEPTH BROACHING CAPACITY (MM) 50
MAX. DIAMETER BROACHING CAPACITY (MM) 38
MAX. DRILLING SOLID BIT (MM) 13
NO LOAD SPEED (RPM) 400 / 690
STANDARD EQUIPMENT Lubrication tank with hose, magnetic lubrication tank holder, 13 mm chuck with Weldon adaptor, chuck key, ejector pin, safety strap
STROKE LENGTH (MM) 146
SUPPLIED IN Kitbox
SOUND POWER LEVEL (LWA)(DB(A)) 93.4
SOUND POWER LEVEL UNCERTAINTY (DB(A)) 3
SOUND PRESSURE LEVEL (LPA)(DB(A)) 82.4
SOUND PRESSURE LEVEL UNCERTAINTY (DB(A)) 3
VIBRATION LEVEL (M/S²) 1.69
VIBRATION UNCERTAINTY (M/S²) 1.5
Sku 4933451012
