Conlan Oils

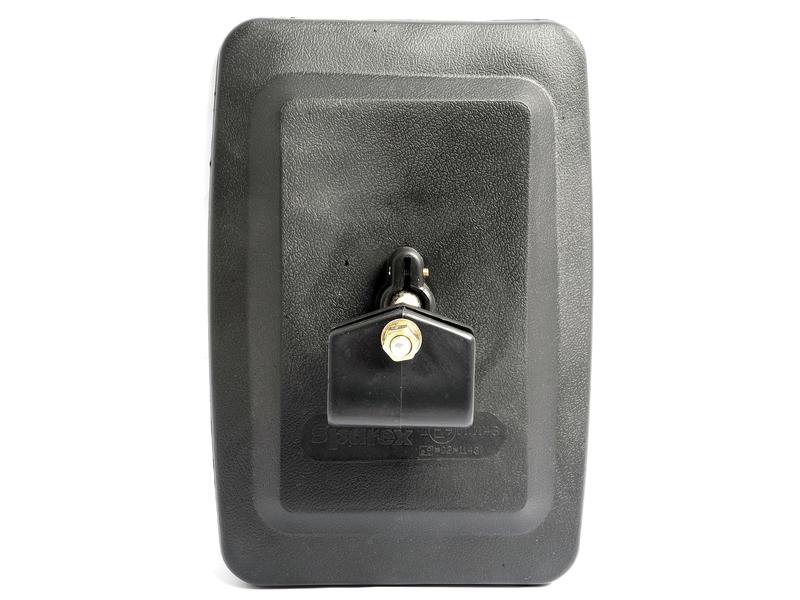

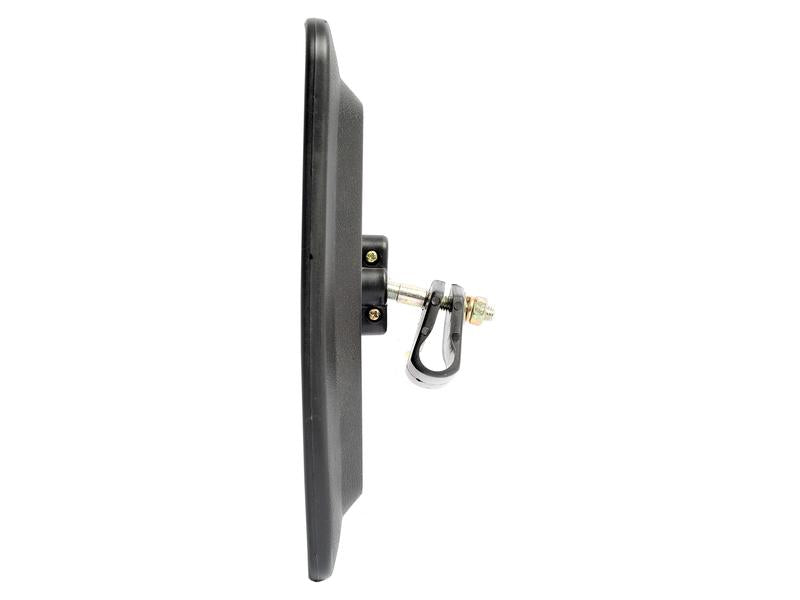

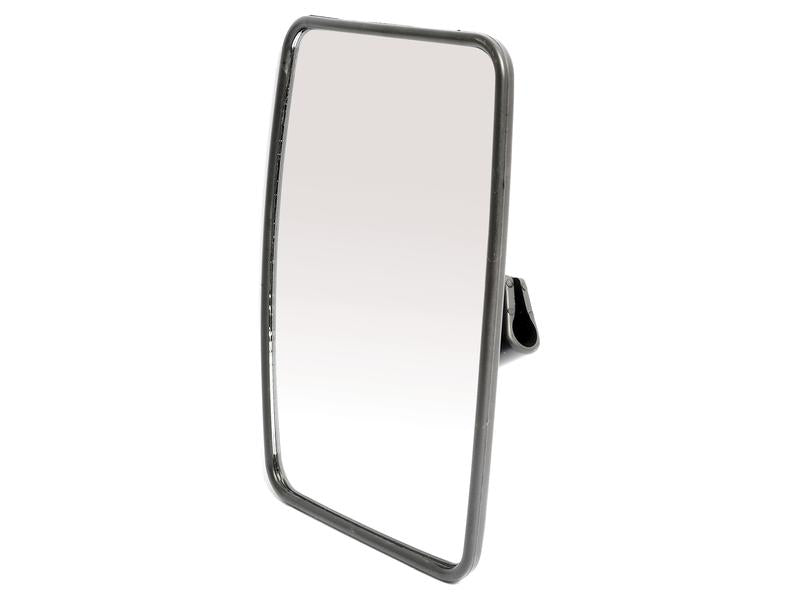

Mirror Head - Rectangular, Convex, 250 x 170mm, RH & LH

SKU: 51182
(0)
€17,00 inc. VAT
In stock
Shipping Mon - Fri Only
100% secure payments
Industry leading quality

Got questions? Feel free to get in touch

Tel: 059 8632494

Email: enquiry@conlanoils
https://conlanoils.com/

Mirror Head - Rectangular, Convex, 250 x 170mm, RH & LH

Arm Ø: 14 - 20mm
Centre Clamp
E Approved: II E9-01.1143 / e9*02*1143

Specifications

Arm Ø (mm) 14 - 20
Barcode 128 S.51182
Barcode EAN13 5023495511825
Brand Sparex
E Approved II E9-01.1143 / e9*02*1143
Fits: Case IH, MF, Fiat, Same, Landini
Fitting RH & LH
Fixing: Centre Clamp
Height (ins) 9
Height (mm) 250
Homologated: Yes
Mirror Type Convex
Related products S.71064, S.71066, S.71067, S.71068
Shape Rectangular
Tariff Code 7009920000
Type Convex
Width (ins) 6-11/16
Width (mm) 170

Suitable For Make/Model

Case IH / International Harvester
JX100, JX1060V, JX1070, JX1070N, JX1070V, JX1075, JX1075N, JX1075V, JX1080U, JX1085C, JX1090U, JX1095, JX1095C, JX1095N, JX1095V, JX1100, JX70U, JX80U, JX90U, JXU 105, JXU 115, JXU 75, JXU 85, JXU 95, QUANTUM 105F, QUANTUM 105N, QUANTUM 105V, QUANTUM 65C, QUANTUM 65V, QUANTUM 75C, QUANTUM 75F, QUANTUM 75N, QUANTUM 75V, QUANTUM 85C, QUANTUM 85F, QUANTUM 85N, QUANTUM 85V, QUANTUM 95C, QUANTUM 95F, QUANTUM 95N, QUANTUM 95V
Fiat
100-90, 110-90, 115-90, 1180, 1280, 130-90, 1380, 140-90, 1580, 160-90, 180-90, 1880, 35-66, 45-66, 45-76, 50-66, 50-86, 55-66, 55-76, 55-86, 55-88, 55-90, 56-66, 580, 60-66, 60-76, 60-86, 60-88, 60-90, 60-94, 62-86, 65-46, 65-66, 65-88, 65-90, 65-94, 680, 70-66, 70-76, 70-86, 70-88, 70-90, 72-86, 72-94, 780, 80-66, 80-76, 80-88, 80-90, 82-86, 82-94, 85-90, 88-94, 880, 90-90, 980, L60, L65, L75, L85, L95
Ford / New Holland
3435, 3830, 3935, 4030, 4135, 4230, 4430, 4635, 4835, 5635, 6635, 7635, T4.105LP, T4.105N, T4.75LP, T4.75N, T4.85LP, T4.85N, T4.95LP, T4.95N, T4020, T4020V, T4030, T4030F, T4030F - UPGRADE SPECIAL, T4030V, T4040, T4040F, T4040F - UPGRADE SPECIAL, T4040V, T4050, T4050F, T4050F - UPGRADE SPECIAL, T4050V, T4060F - UPGRADE SPECIAL, T4060V, T5030, T5040, T5050, T5060, T5070, TK100A, TK4.100, TK4.100F, TK4.100M, TK4.100N, TK4.100V, TK4.110, TK4.110M, TK4.80F, TK4.80N, TK4.80V, TK4.90, TK4.90F, TK4.90M, TK4.90N, TK4.90V, TK4030, TK65F, TK65V, TK75F, TK75M, TK75V, TK76, TK76M, TK80A, TK85, TK85M, TK90A, TK95M, TL100, TL100A, TL70, TL70A, TL80, TL80A, TL90, TL90A, TN60VA, TN70A, TN70F, TN70NA, TN70VA, TN75A, TN75F, TN75NA, TN75VA, TN80F, TN85A, TN85DA, TN85FA, TN85SA, TN95A, TN95DA, TN95F, TN95NA, TN95VA
Landini
6880, 7550, 7880, 8550, 8880, 9080, 9880, LARGE 10000, LARGE 9550
Manitou
VARIOUS
Massey Ferguson
1004, 1004T, 1007, 1014, 274SK, 284, 294, 377, 387, 397, 675, 690, 698, 698T, 699
Merlo
25-7, 27-7, 30-7, P28-7 EVS, P28.7 EVT, P28.9 EVS, P32.7 EVT
Renault
103-52, 103-54, 110-54, 120-54, 133-54, 145-54, 155-54, 55-12, 55-14, 70-12, 70-14, 80-12, 80-14, 851-4S, 851S, DIONIS 110, DIONIS 120, DIONIS 130, DIONIS 140, FRUCTUS 110, FRUCTUS 120, FRUCTUS 130, FRUCTUS 140, PALES 210, PALES 230, PALES 240
Steyr
4065 KOMPAKT, 4075 KOMPAKT, 4085 KOMPAKT, 4095 KOMPAKT, 485 KOMPAKT, 495 KOMPAKT

OEM Part Numbers

  • Case IH / International Harvester 5126233, 5194648
  • Fiat 5194648, 5126233
  • Ford / New Holland 5126233
  • Landini 3557565M91, 3301568M92, 3301568M91
  • Massey Ferguson 3301568M91, 3902430M1, 3301568M92
  • Merlo 032887, M032887
  • Renault 6005007244, 6005022753
  • Same 92331833
