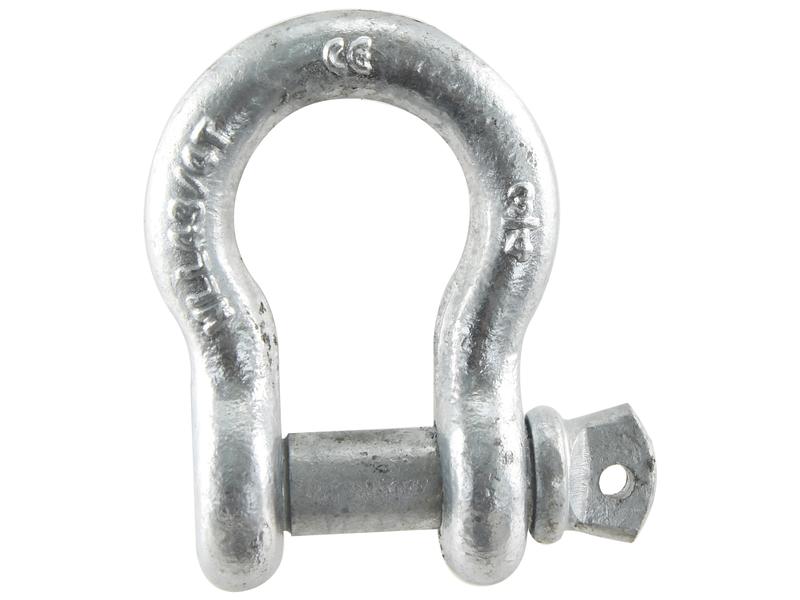

Sparex Bow Shackle 4.75 Tonne S.21563 – 19mm

The Sparex Bow Shackle S.21563 is a robust, drop-forged shackle designed for compatible lifting, towing, agricultural and material-handling applications. With a 4.75 tonne (10,450 lb) Safe Working Load, this heavy-duty bow shackle provides a reliable connection point for demanding professional applications.

Manufactured from mild steel with a drop-forged construction, the 19mm shackle features a 22mm diameter pin, 70mm internal length and 30mm jaw width. Its bow-shaped design provides additional room for connecting compatible lifting and towing components.

Key Features

• 4.75 tonne Safe Working Load – Rated for loads up to 4.75 tonnes / 10,450 lbs.
• 19mm shackle size – Suitable for a wide range of compatible agricultural, towing and lifting applications.
• Drop-forged construction – Provides a strong and robust shackle design.
• 22mm pin diameter – Heavy-duty pin for secure connection.
• 70mm internal length – Provides useful clearance for compatible components.
• 30mm jaw width – Suitable for compatible chains, straps, hooks and lifting components.
• Mild steel construction – Designed for demanding mechanical and material-handling applications.
• 28.5 tonne minimum breaking strength – Provides substantial strength above the stated Safe Working Load.

Specifications

Ideal for Agricultural, Towing & Lifting Applications

The Sparex 4.75T Bow Shackle is suitable for a variety of compatible applications where a strong, secure connection is required.

Ideal for:

• Agricultural machinery
• Tractors and farm equipment
• Trailers
• Towing applications
• Recovery equipment
• Lifting applications
• Material handling
• Chains and lifting accessories
• Workshop and machinery maintenance
• General heavy-duty connection applications

The bow-shaped profile allows the shackle to accommodate compatible lifting and connection components while providing a robust connection point.

4.75 Tonne Safe Working Load

The S.21563 has a stated Safe Working Load (SWL) of 4.75 tonnes / 10,450 lbs and a minimum breaking strength of 28.5 tonnes.

Important: The Safe Working Load must never be exceeded. Always ensure the shackle is suitable for the specific application, load, connection method and lifting equipment being used. Inspect the shackle before use and follow appropriate lifting and safety procedures.

Why Choose the Sparex S.21563 Bow Shackle?

• 4.75 tonne / 10,450 lb SWL
• 19mm / 3/4" shackle size
• 22mm / 7/8" pin diameter
• 70mm internal length
• 30mm jaw width
• Drop-forged mild steel construction
• 28.5 tonne minimum breaking strength
• Suitable for agricultural and towing applications
• Ideal for compatible lifting and material-handling equipment
• Genuine Sparex component

Buy Sparex Bow Shackles from Conlan Oils

Shop the Sparex Bow Shackle 4.75 Tonne S.21563 from Conlan Oils. A robust shackle for compatible agricultural, towing, lifting, recovery and material-handling applications, available to customers across Ireland.
