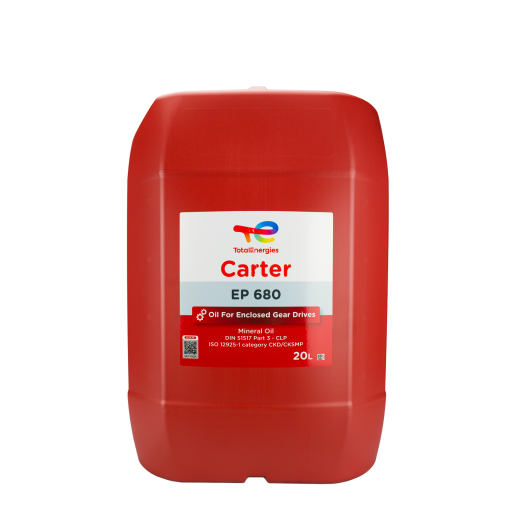

TOTAL CARTER EP 680 - 20 Litre - DCAR05
Mineral oils for enclosed gears.
Applications
CARTER EP has been specially designed for lubricating enclosed gears operating under severe conditions:
- bevel and spur gears
- bearings and gear couplings
- worm gears.
Benefits
- Excellent extreme-pressure and anti-wear properties.
- Good seal compatibility
- Very good resistance to oil oxidation and degradation
- Outstanding protection to rust and corrosion of copper alloys
- Very good resistance to foaming and emulsion formation.
Specifications
- DIN 51517 Part 3- CLP
- ISO 12925-1 CKD
- AGMA 9005 – E02 (EP)
- GB 5903-2011
- DAVID BROWN S1.53.101 E
- AIST 224
- SEB 181226
- JIS K2219:2006 (Class2)
- SIEMENS - FLENDER
Handling Operations
- CAUTION: not compatible with polyglycol base oils.
Health and Safety
TOTAL CARTER EP 680 Guidance on Health and Safety is available on the appropriate Material Safety Data Sheet
Protect the Environment
Take used TOTAL CARTER EP 680 to an authorised collection point. Do not discharge into drains, soil or water.
Typical Physical Characteristics
| Properties |
|
TOTAL CARTER EP 680
|
| Density at 15 °C kg/m3 |
ISO 3675 |
904 |
| Viscosity at 40 °C mm2/s |
ISO 3104 |
680 |
| Viscosity at 100 °C mm2/s |
ISO 3104 |
40.9 |
| Viscosity index |
ISO 2909 |
100 |
| Open cup flash point ºC |
ISO 2592 |
260 |
| Pour point °C |
ISO 3016 |
- 12 |
| FZG A/8,3/90 – A/16.6/90 Load stage |
DIN ISO 14635-1 |
> 12 |
| FZG - Micropitting Damage load stage |
FVA 54/7 |
> 10 |
| FZG- Gft Classification |
|
High |
What are the main characteristics of Total Carter EP 680?
Total Carter EP 680 is a high-viscosity mineral lubricant suitable for applications such as gears, circulation systems and bearings. It has high thermal stability and provides protection against wear, corrosion and rusting. It also has good demulsifying properties, meaning it can effectively separate water and prevent the formation of emulsions.
Why is Total Carter EP 680 suitable for heavy loads in gear transmissions?
Total Carter EP 680 is suitable for heavy loads in gear transmissions because of its high viscosity and the extreme pressure and wear protection it provides. Under heavy loads, there is higher friction between gears and more heat can be generated. Total Carter EP 680's high thermal stability ensures that the lubricant maintains its viscosity and does not lose its lubricating properties, even at high temperatures. In addition, the lubricant provides protection against wear, thus extending the life of gears. Finally, Total Carter EP 680 also offers good demulsifying properties, allowing it to effectively separate water and prevent the formation of emulsions, which prolongs lubricant and equipment life.
Technical Data Sheet
**If in doubt about oil requirements, please consult our experts to confirm your oil choice prior to purchase.
