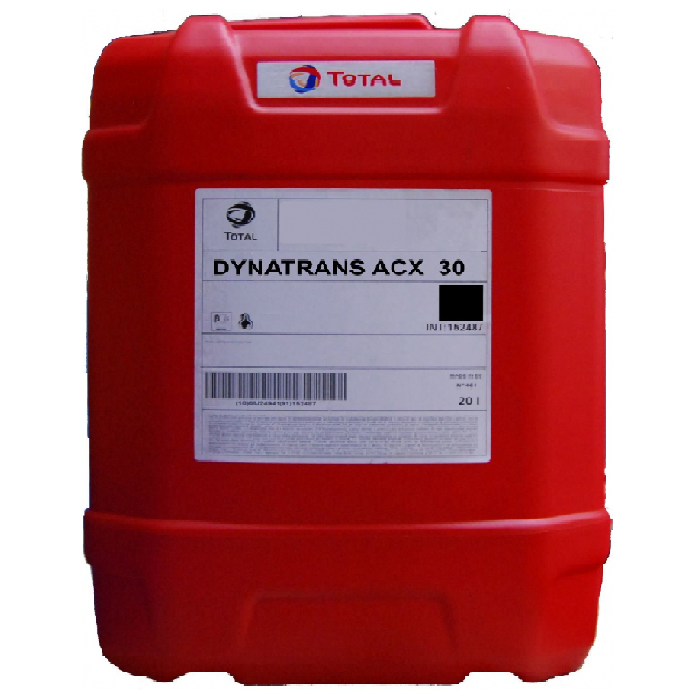

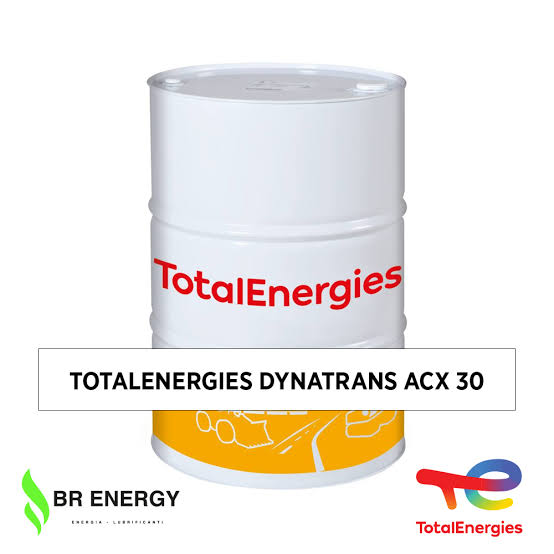

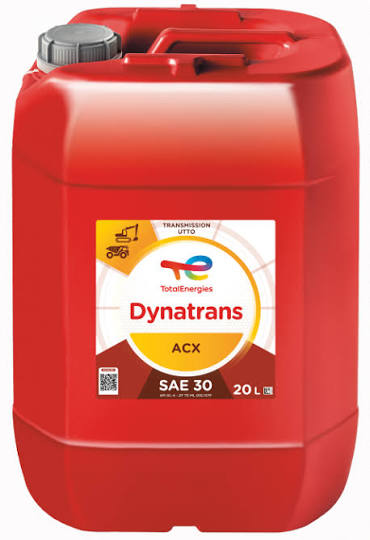

TotalEnergies Dynatrans ACX 30 –  SAE 30 Hydraulic & Transmission Oil

Product Description

TotalEnergies Dynatrans ACX 30 is a high-performance SAE 30 hydraulic and transmission oil designed for heavy-duty construction, earthmoving and industrial equipment. Formulated with specialised friction characteristics, it is suitable for powershift transmissions, axles, final drives and hydraulic systems where the equipment manufacturer specifies the relevant lubricant requirements.

Its advanced formulation provides anti-wear, anti-corrosion and anti-foam properties to help protect components and maintain reliable performance under demanding operating conditions. Good seal compatibility further supports its use in compatible hydraulic and drivetrain systems.

The SAE 30 viscosity grade is particularly suited to applicable powershift gearbox applications, including certain Caterpillar machines requiring a fluid meeting the relevant Caterpillar TO-4 specification.

Key Features & Benefits

• Anti-Wear Protection: Helps reduce wear in heavily loaded transmission and hydraulic components.

• Corrosion Resistance: Helps protect internal metal surfaces against corrosion.

• Foam Control: Helps maintain consistent lubrication and reliable operation.

• Seal Compatibility: Designed for good compatibility with suitable seals.

• Specialised Friction Properties: Supports the correct friction performance required by compatible transmissions and brake systems.

• Heavy-Duty Performance: Suitable for demanding construction, earthmoving and industrial applications where specified.

Applications

TotalEnergies Dynatrans ACX 30 is designed for equipment requiring a compatible SAE 30 transmission or hydraulic lubricant, including:

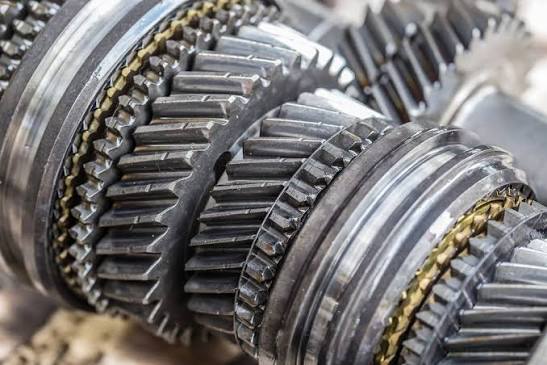

• Powershift gearboxes

• Hydraulic systems

• Axles and final drives

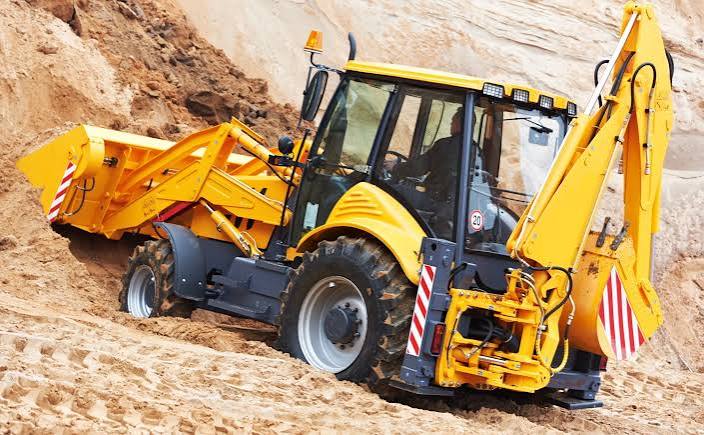

• Construction and earthmoving machinery

• Heavy-duty industrial equipment

• Machinery fitted with specific brake friction discs

Caterpillar Equipment Applications

For applicable Caterpillar equipment operating between -10°C and +40°C, the Dynatrans ACX viscosity grades are used for different applications:

Dynatrans ACX 30 is the SAE 30 grade for compatible powershift gearbox applications. Always consult the equipment manufacturer's recommendations before selecting a lubricant.

Specifications & Manufacturer Requirements

The product information lists the following specifications and requirements:

• ZF: TE-ML 03C

• ZF: TE-ML 07F

• API: GL-4 / CF

• Caterpillar: TO-4

• Caterpillar: HYDO Advanced 30

• Allison: TES 439

• Allison: C-4 (obsolete specification)

• Komatsu: Micro Clutch Test (JCMAS)

Check the latest TotalEnergies technical data sheet to confirm the applicable specifications, approvals and recommendations for your equipment.

Technical Data Sheet

Product Specifications
