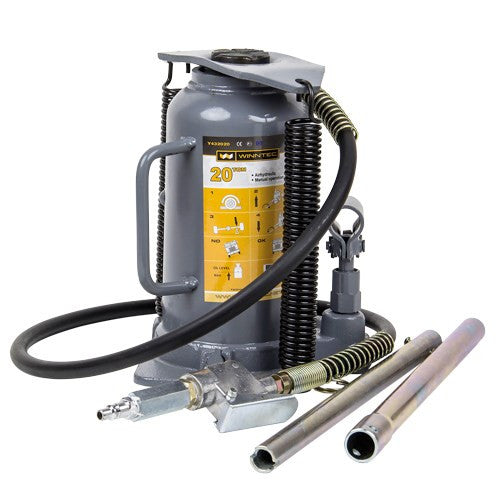

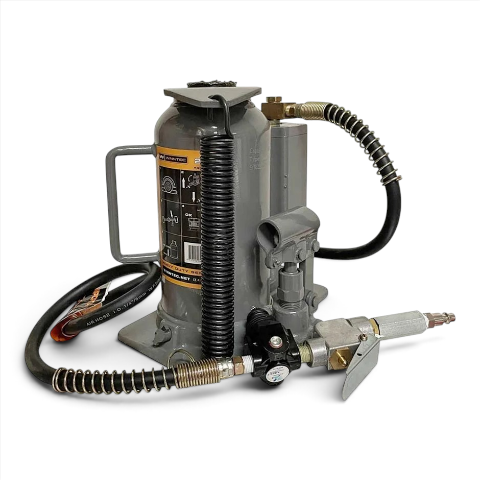

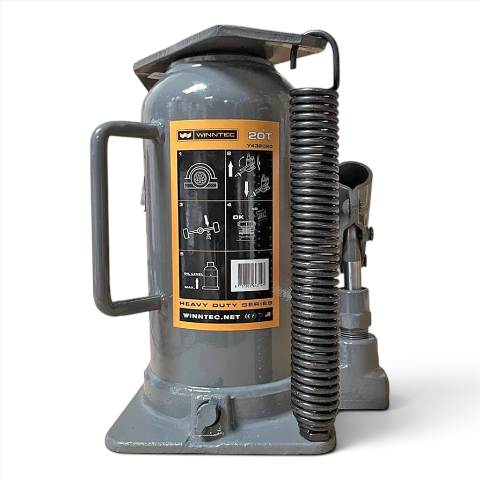

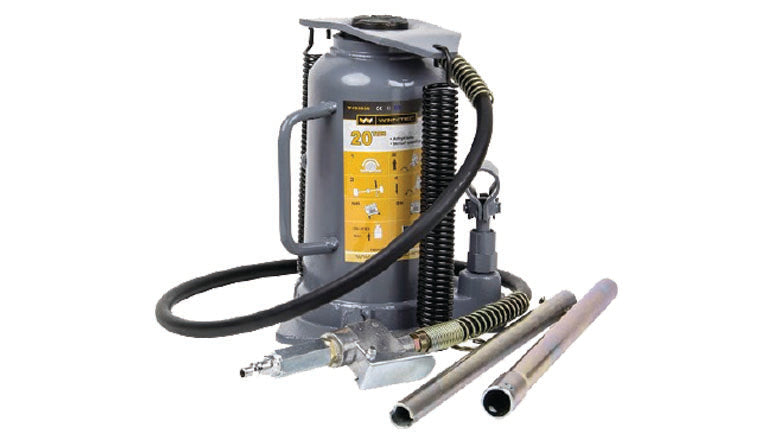

The Winntec Y432020 20 Ton Air Bottle Jack – 09827 is a heavy-duty air hydraulic bottle jack designed for lifting large and heavy vehicles in professional garages, workshops, agricultural environments and commercial vehicle maintenance applications.
With an impressive 20-ton lifting capacity, a 245mm minimum lifting height and up to 475mm maximum height, this robust Winntec jack combines powerful air-assisted lifting with a manual pump for added versatility. It can be used in both horizontal and vertical positions, making it suitable for a wide range of vehicle lifting requirements.
The Winntec 20T Air Bottle Jack is designed for demanding lifting applications where a conventional hand-operated bottle jack may be too slow or labour-intensive.
Its 20-ton capacity makes it suitable for larger vehicles including trucks, commercial vehicles, buses and heavy agricultural machinery, providing powerful air-assisted lifting for professional workshop environments.
The integrated aluminium air motor provides powered hydraulic lifting, helping to make raising heavy vehicles faster and easier.
A built-in manual pump provides additional versatility, while the integrated air filters help protect the pneumatic system from contamination.
The jack provides a 245mm minimum lifting height and can reach up to 475mm, giving a substantial lifting range for larger vehicles.
The additional 80mm screw extension allows the operator to adjust the starting height and improve positioning for different lifting points.
Unlike many conventional bottle jacks, the Y432020 is designed for both horizontal and vertical operation.
This makes it a versatile choice for professional workshops and vehicle maintenance applications where different lifting positions may be required.
The Winntec Y432020 is built for demanding workshop use and incorporates several heavy-duty components, including a heat-treated cylinder wall, polished main ram, chrome-plated pump pistons and rugged aluminium air motor.
The wide welded base helps spread the load and provides a solid foundation during lifting operations.
The Winntec Y432020 20 Ton Air Bottle Jack is ideal for:
| Specification | Details |
|---|---|
| Brand | Winntec |
| Model | Y432020 |
| Product Code | 09827 |
| Product Type | Air Hydraulic Bottle Jack |
| Lifting Capacity | 20 Ton |
| Minimum Height | 245mm |
| Maximum Height | 475mm |
| Screw Extension | 80mm |
| Air Consumption | 5 CFM / 140 L/min |
| Operation | Air-Assisted & Manual |
| Operating Position | Horizontal & Vertical |
| Construction | Heavy-Duty |
| Net Weight | Approx. 16kg |
| Warranty | 3 Years |
Technical specifications are based on the manufacturer's current product information.
The Winntec Y432020 20 Ton Air Bottle Jack is an excellent choice for professional users who need a high-capacity pneumatic bottle jack for heavy vehicles and machinery.
Its combination of 20-ton lifting capacity, air-assisted operation, 245–475mm lifting range, 80mm screw extension and heavy-duty construction makes it particularly well suited to truck, agricultural, commercial vehicle and industrial workshops.
The integrated manual pump also provides flexibility when compressed air is unavailable, while the robust Winntec construction is designed for demanding professional use.
Important: A bottle jack is a lifting device and should be used only in accordance with the manufacturer's instructions. Never work underneath a vehicle supported solely by a jack; use correctly rated axle stands or other approved supports.
